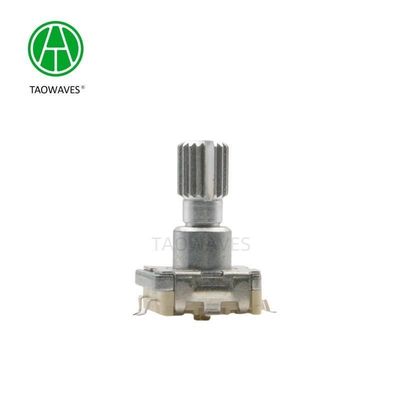

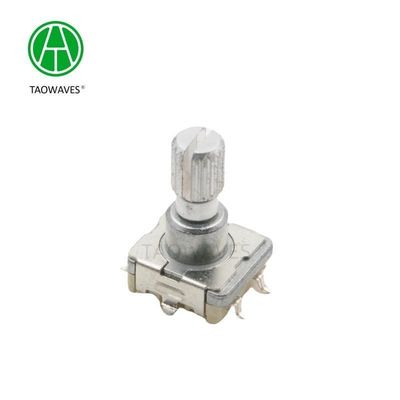

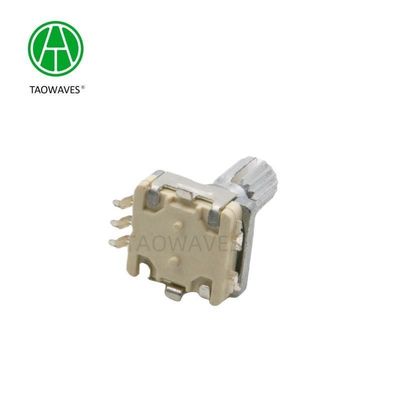

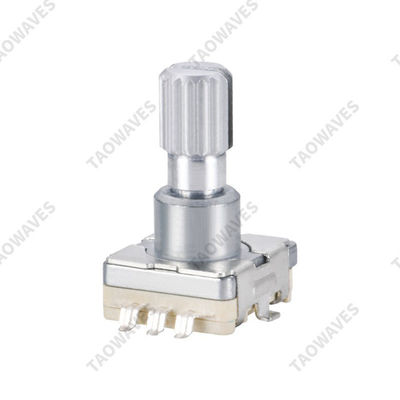

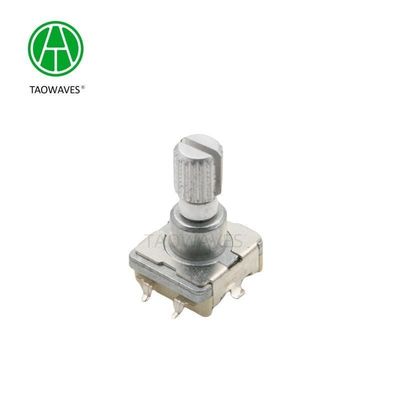

Single Button Rotary Type Audio Reset Switch With Rotary Number
Our Product Introduction
for more products please visit us on ttencoder.com
Basic Information
Product Specification
Model NO.:
RS11B11R03
Condition:
New
Customized:
Support Customization
Factory Attributes:
ODM
Transport Package:
Carton
Specification:
11mm
Trademark:
TAOWAVES
Origin:
China
Rotary Number:
Single Button
Usage:
Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products
Standard:
Standard
Structure:
Self-Reset
Operation:
Knob
Certification:
ISO
Customization:
Available | Customized Request
Highlight:
Single Button Reset Switch
,Single Button Rotary Switch
,Audio Reset Switch
More Images
Our Product Introduction
for more products please visit us on ttencoder.com
Product Description
11mm Rotary Type Reset Switch for Audio

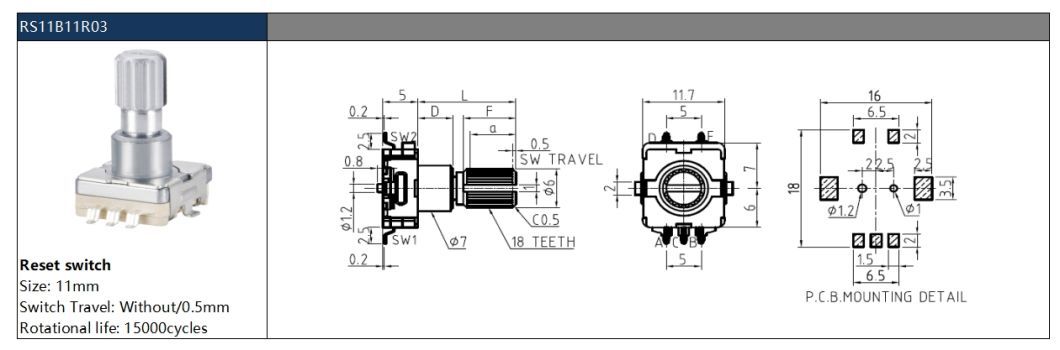

RS11 Series Product Specifications

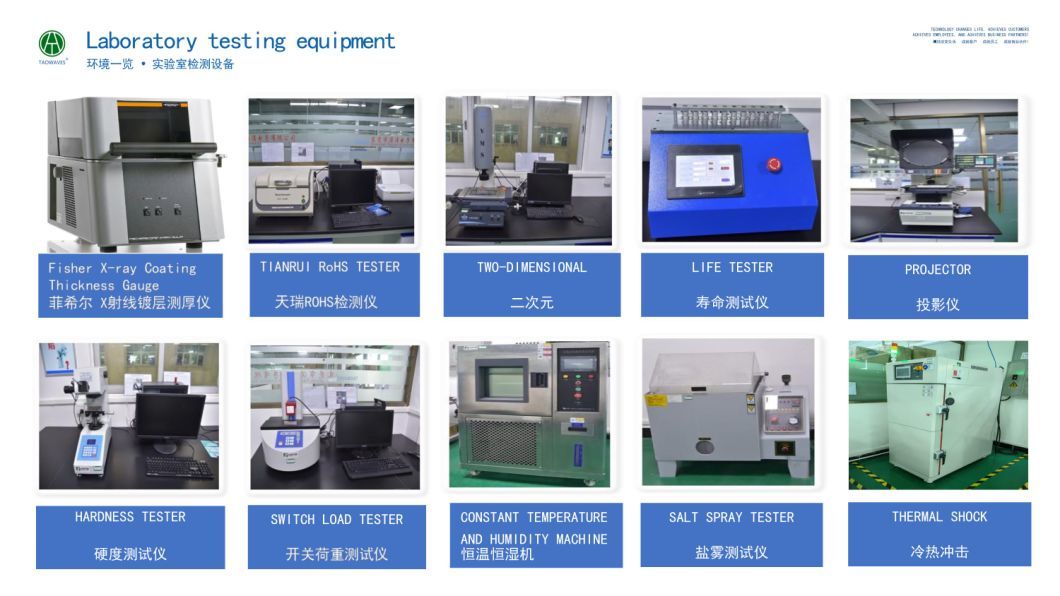

Our Factory
Application:
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
RS11 Series Product Specifications
| 1.Electrical Characteristics | |
| Rated voltage: | DC 5V |
| Resistive load: | 10mA |
| Insulation resistance: | 100MΩ Min at DC 250V |
| Dielectric strength: | 1 minute at AC 300V |
| Switching characteristics: | S.P.D.T Automatic reset |
| 2.Mechanical Characteristics | |
| Total ratational angle: | 90°±5° |
| Detent torque: | 3~20mN.m.(30~200gf.cm) |
| End stop strength: | 3.0Kgf Min |
| Shaft wobble: | 0.7*L/30mm p-p Max |
| Push-Pull Strength of shaft | 8KG |
| Operation fore of switch: | 500±200gf |
| Travel of switch: | 0.5±0.3 mm |
| 3.Endurance Characteristics | |
| Rotational life: | 15,000cycles |
| Push-life: | 20,000cycles |
| Operating temperature range: | -30ºC to+80ºC |
| Storage temperature range: | -40ºC to+85ºC |
Our Factory
Application:
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
