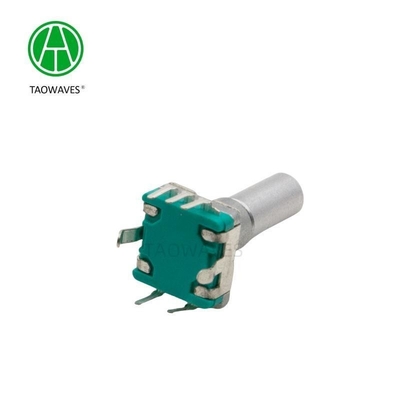

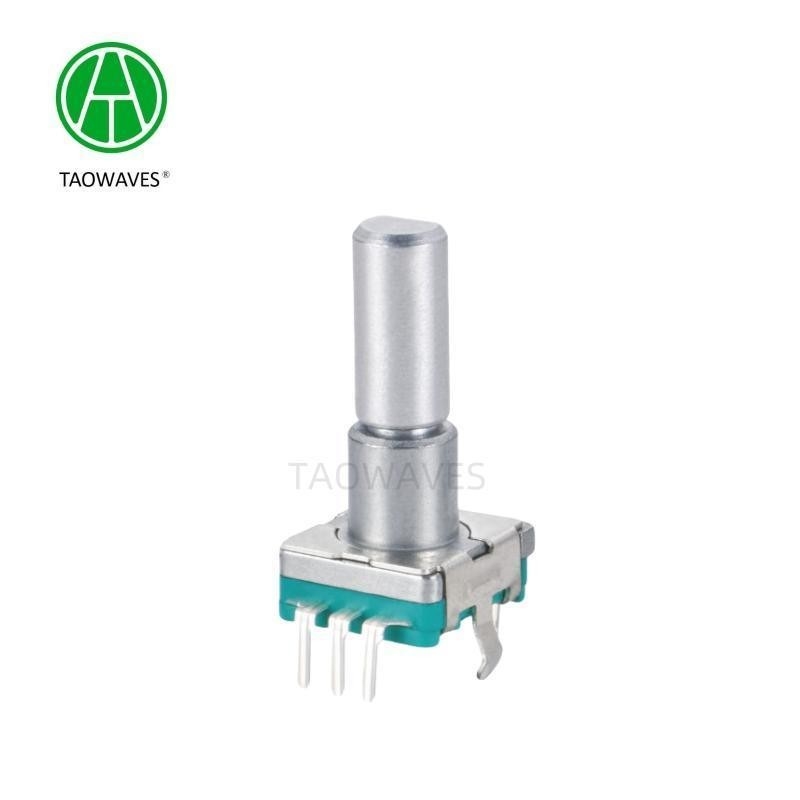

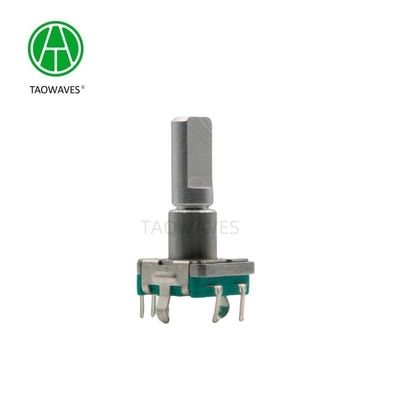

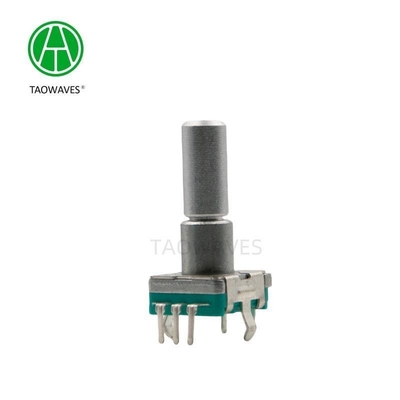

RS11 Series Product Specifications
| 1.Electrical Characteristics | |
| Rated voltage: | DC 5V |
| Resistive load: | 10mA |
| Insulation resistance: | 100MΩ Min at DC 250V |
| Dielectric strength: | 1 minute at AC 300V |
| Switching characteristics: | S.P.D.T Automatic reset |
| 2.Mechanical Characteristics | |
| Total ratational angle: | 90°±5° |
| Detent torque: | 3~20mN.m.(30~200gf.cm) |
| End stop strength: | 3.0Kgf Min |
| Shaft wobble: | 0.7*L/30mm p-p Max |
| Push-Pull Strength of shaft | 8KG |
| Operation fore of switch: | 500±200gf |
| Travel of switch: | 0.5±0.3 mm |
| 3.Endurance Characteristics | |
| Rotational life: | 15,000cycles |
| Push-life: | 20,000cycles |
| Operating temperature range: | -30ºC to+80ºC |
| Storage temperature range: | -40ºC to+85ºC |
Application:
|
|
