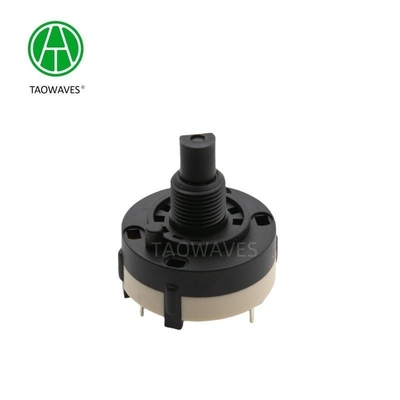

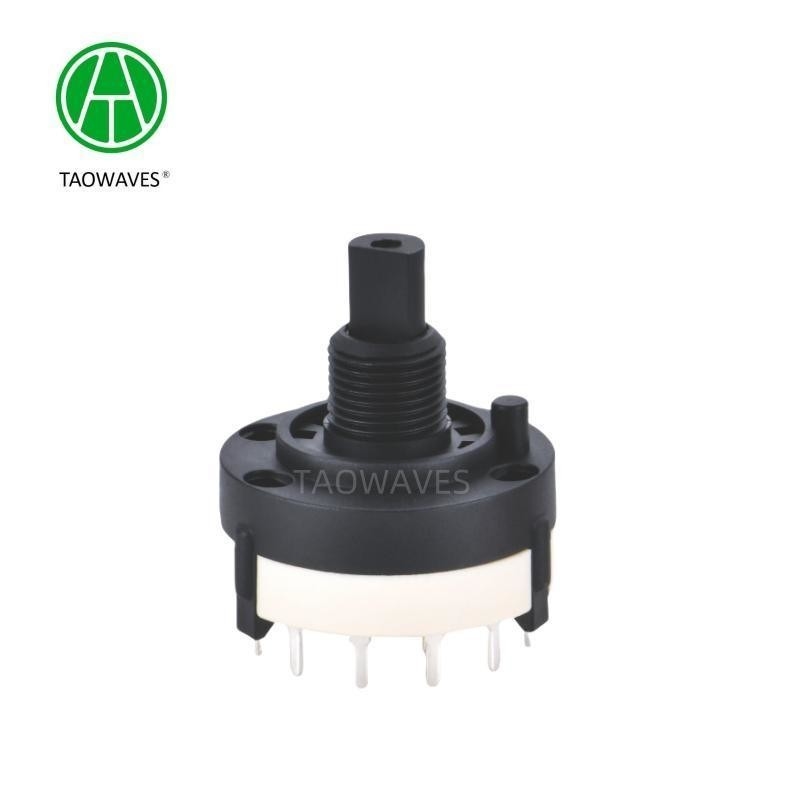

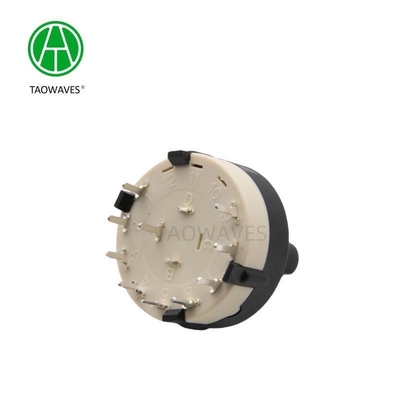

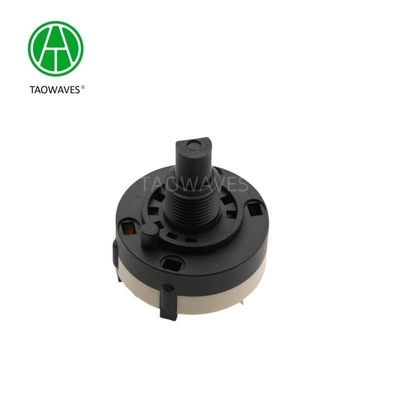

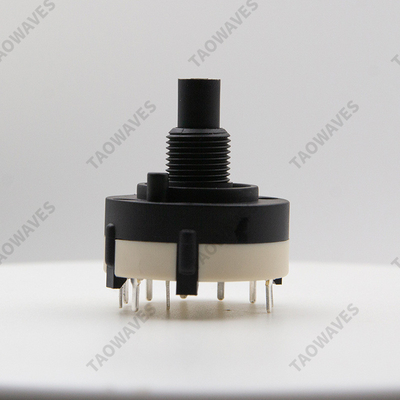

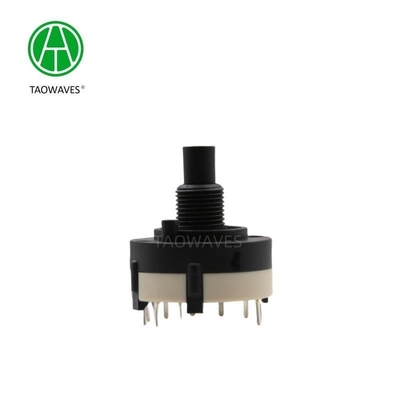

Single Button 2-12 Positions RS26 Rotary Band Switch Position Switch
  • name
  • name
  • name
  • name
  • name
  • name

Single Button 2-12 Positions RS26 Rotary Band Switch Position Switch

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
RS26011V01
Condition:
New
Customized:
Support Customization
Factory Attributes:
ODM
Positions:
2-12
Transport Package:
Carton
Specification:
26mm
Trademark:
TAOWAVES
Origin:
China
Rotary Number:
Single Button
Usage:
Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products, Home Appliances
Standard:
Standard
Structure:
Self-Reset
Operation:
Knob
Certification:
ISO
Customization:
Available | Customized Request
Highlight:

12 Positions Position Switch

,

RS26 Rotary Band Switch

,

RS26 Position Switch

Product Description
RS26 Rotary Type Band Switch Position Switch
RS26 Rotary Type Band Switch Position Switch
RS26 Rotary switch Series
1.Electrical  Characteristics
Rated voltage: AC 125V
Maximum operating current: 0.3A
Insulation resistance: 100MΩ Min at DC 500V
Dielectric strength: 1 minute at AC 500V

2.Mechanical Characteristics
Operating force: 0.5±0.2kgf-cm
Rotation stopper strength: More than 5kgf.cm

3.Endurance Characteristics
Rotational life: 10,000cycles
Operating temperature range: -10ºC to+70ºC
Storage temperature range: -40ºC to+85ºC

Our Factory
RS26 Rotary Type Band Switch Position SwitchRS26 Rotary Type Band Switch Position SwitchRS26 Rotary Type Band Switch Position SwitchApplication:
RS26 Rotary Type Band Switch Position Switch

RS26 Rotary Type Band Switch Position Switch
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
