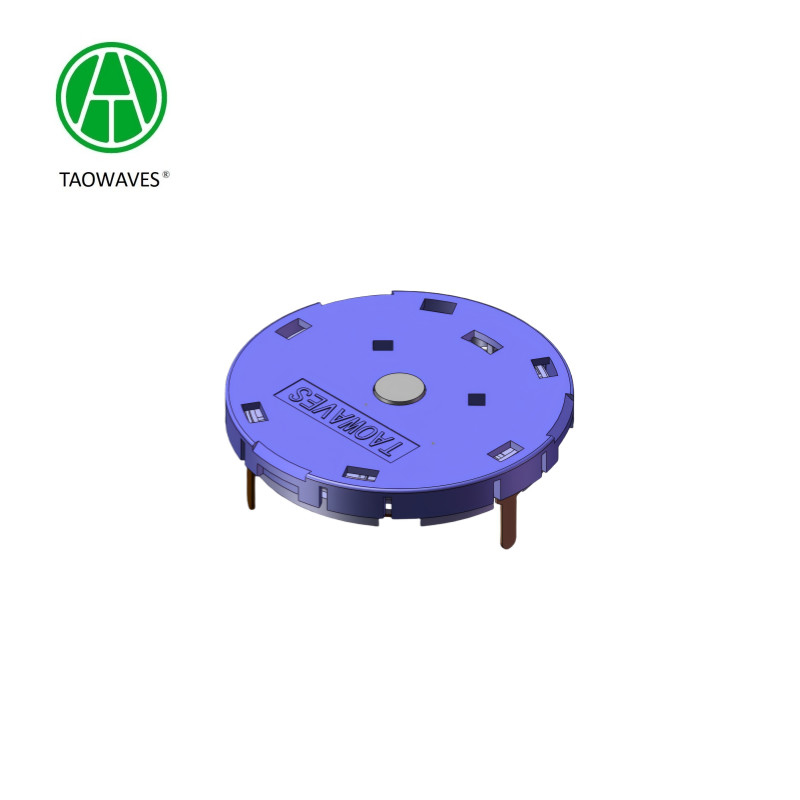

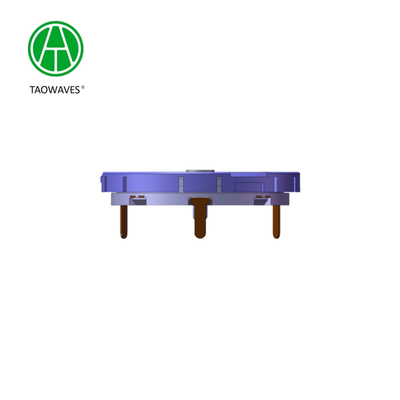

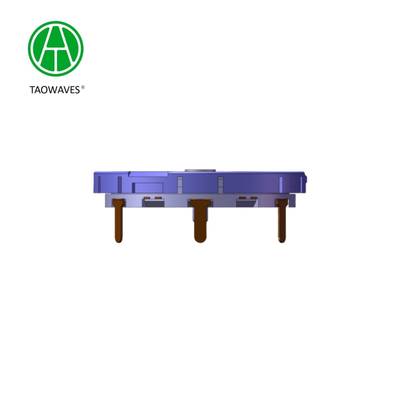

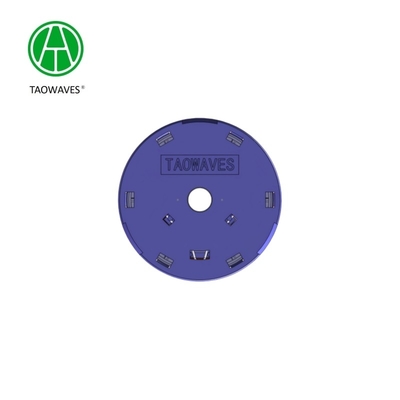

EC21 Planar Encoder Remote Control Encoder with Push Button

Brand Name:	TAOWAVES
Model Number:	EC21B01V01
MOQ:	2,000pcs
Price:	0.25~0.39usd
Packaging Details:	Blister tray inside, Carton outside
Payment Terms:	T/T, 30%+70%

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,ISO14001and IATF16949

Document:

Size:

Trademark:

TAOWAVES

Pulse Number:

12pulses/360°

Transport Package:

Carton

Type:

Incremental

Customized:

Support Customization

Function:

Rotary Encoder

Signal Output:

Voltage Output

Rotational Life::

30000cycles

Supply Ability:

5,500,000pcs/Month

Highlight:

Push Button Planar Encoder

Remote Control Planar Encoder

EC21 Planar Encoder

Product Description

EC21 Planar Encoder Remote Control Encoder with Push Button

EC21 Planar Encoder Remote Control Encoder with Push Button 0
EC21 Series Encoder Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	12pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	T1,T2,T3,T4≥0.08T

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	Max 50gf.cm

3.Endurance Characteristics
Rotational life:	30,000cycles
Operating temperature range:	-30℃ to+80℃
Storage temperature range:	-40℃ to+85℃

Our Factory
Ec12 High Precision 12mm Audio Volume Encoder Sound Control Application:

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
