Good price online

products details

Home > Products >
Insulated Shaft Encoder
>
Customizable Absolute Shaft Encoder with Dual Knob Control
All Category

Encoder Series

EC06 Encoder

EC07 Encoder

EC09 Encoder

EC10 Encoder

EC11 Encoder

EC12 Encoder

EC15 Encoder

EC16 Encoder

EC21 Encoder

EC25 Encoder

EC28 Encoder

EC30 Encoder

EC35 Encoder

EC40 Encoder

EC43 Encoder

EC50 Encoder

EC56 Encoder

ES14 Encoder

ES16 Encoder

ES18 Encoder

RS11 Encoder

RS12 Encoder

RS17 Encoder

Rotary Encoder

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Hollow Shaft Encoder

Absolute Encoder

Incremental Encoder

Reset Switch

Rotary Band Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

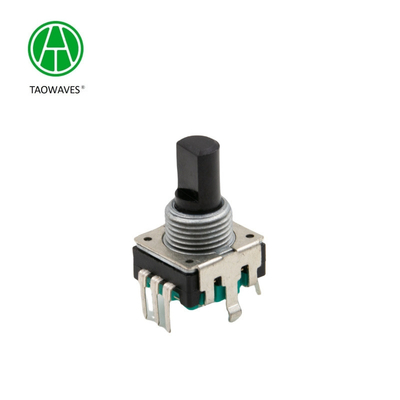

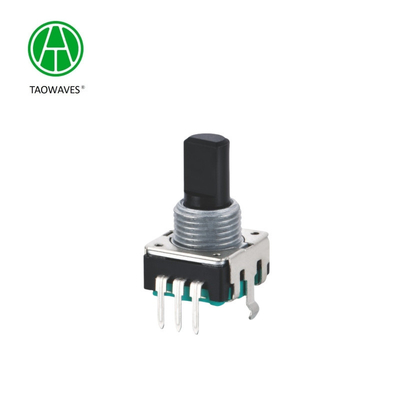

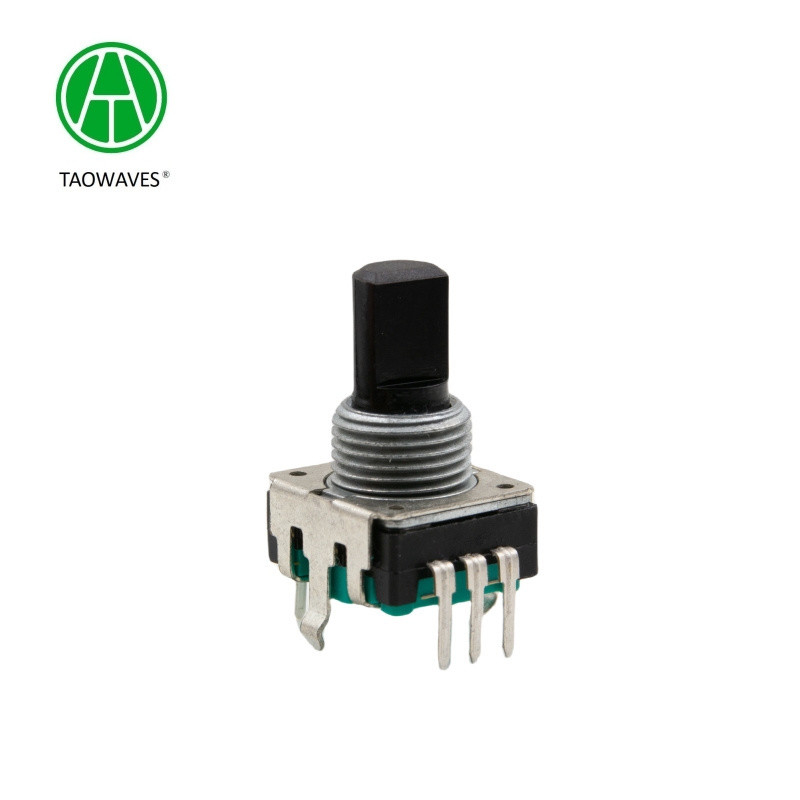

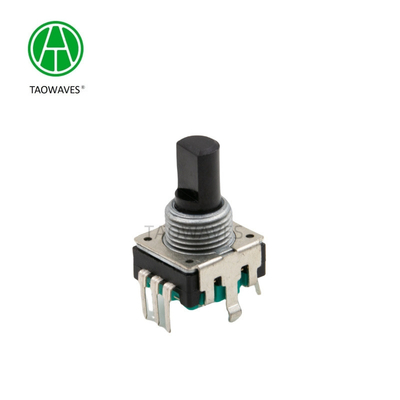

Customizable Absolute Shaft Encoder with Dual Knob Control
  • name
  • name
  • name
  • name
  • name
  • name

Customizable Absolute Shaft Encoder with Dual Knob Control

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC12C31V02
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Package:
-
Installation Form:
Axle Sleeve Type
Brand:
Taowaves
Axonia:
-
Transport Package:
Carton
Specification:
12mm
Trademark:
TAOWAVES
Origin:
China
Customization:
Available
Type:
Rotary Encoder
Working Principle:
Incremental
Highlight:

Customizable Shaft Encoder

,

Absolute Shaft Encoder

,

Dual Knob Control Shaft Encoder

Product Description
12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices
Customizable Absolute Shaft Encoder with Dual Knob Control 0
EC12 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 12/24pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 12≥6.7ms / 24≥3.4ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 3~15mN.m.(30~150gf.cm)
Shaft wobble: 0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft 8KG
Operation fore of switch: 500±200gf / 1000±200gf
Travel of switch: 0.5±0.3 mm

3.Endurance Characteristics
Rotational life: 30,000cycles
Push-life: 20,000cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
Customizable Absolute Shaft Encoder with Dual Knob Control 1Customizable Absolute Shaft Encoder with Dual Knob Control 2Customizable Absolute Shaft Encoder with Dual Knob Control 3Application:
Customizable Absolute Shaft Encoder with Dual Knob Control 4

Customizable Absolute Shaft Encoder with Dual Knob Control 5
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.


Tags:
