Incremental Encoder

Rotary Encoder with Waterproof Knob for Portable Controls

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

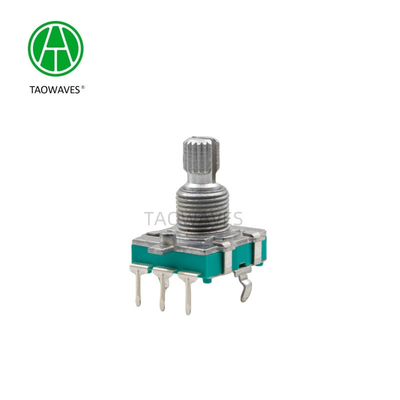

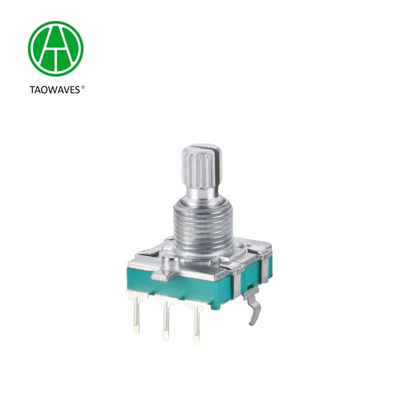

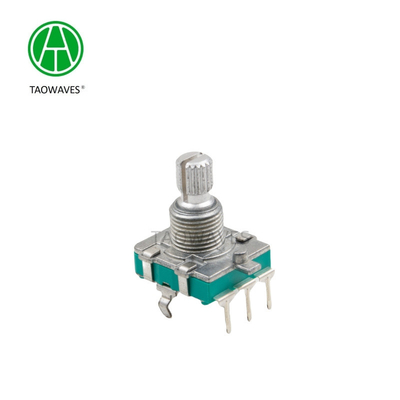

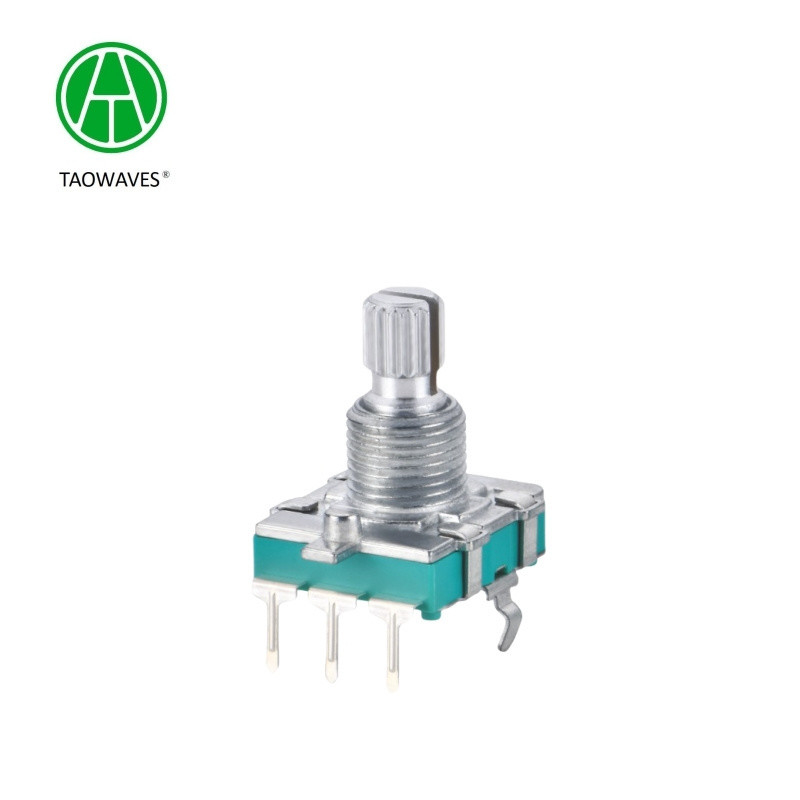

Rotary Encoder with Waterproof Knob for Portable Controls

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

EC16B50V01

Readout Mode:

Contact

Operating System:

Contact Brush Type

Signal Output:

Voltage Output

Axle Sleeve Type:

Empty Type

Package:

Installation Form:

Axle Sleeve Type

Brand:

Taowaves

Axonia:

Customized:

Support Customization

Transport Package:

Carton

Specification:

16mm

Trademark:

TAOWAVES

Origin:

China

Customization:

Available

Type:

Rotary Encoder

Working Principle:

Incremental

Highlight:

Rotary Encoder With Waterproof Knob

Waterproof Portable Controls Rotary Encoder

Product Description

16mm Incremental Metal Shaft Rotary Encoder With Shaft Sleeve And No Switch 12/24pulses

EC16 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	12/24pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	12≥6.7ms / 24≥3.4ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	3~15mN.m.(30~150gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	8KG

3.Endurance Characteristics
Rotational life:	30,000cycles
Operating temperature range:	-30ºC to+80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
Rotary Encoder with Waterproof Knob for Portable Controls 1

Application:
Rotary Encoder with Waterproof Knob for Portable Controls 4

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
