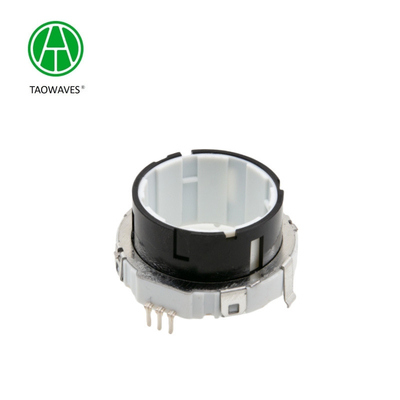

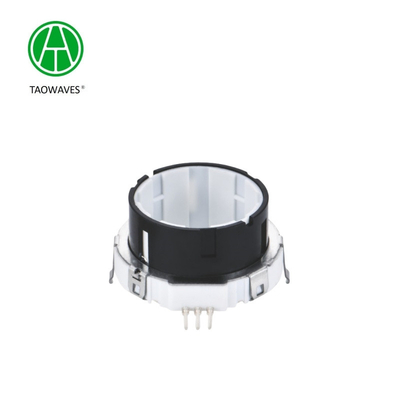

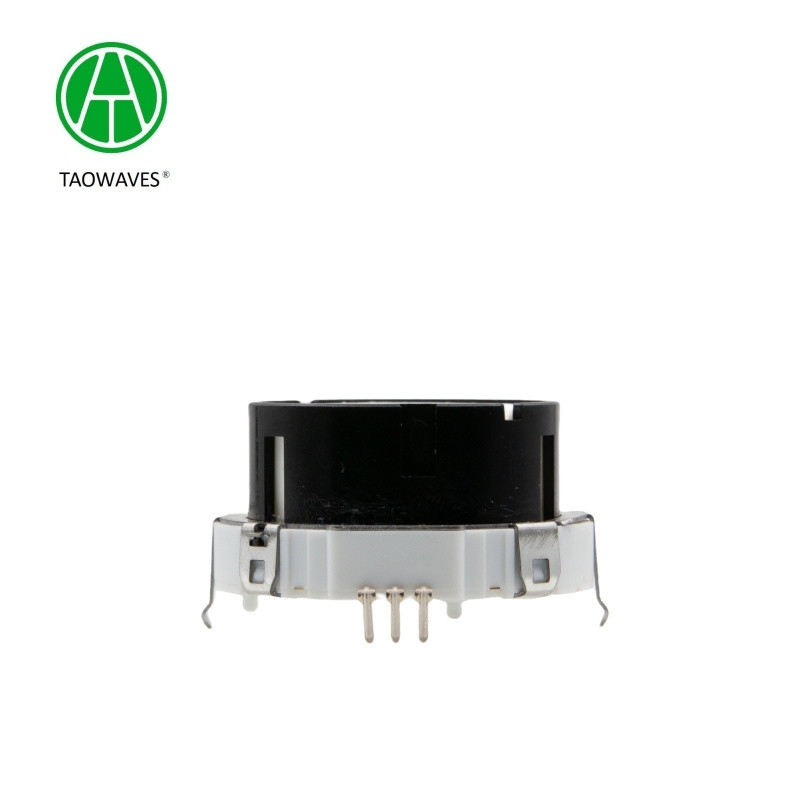

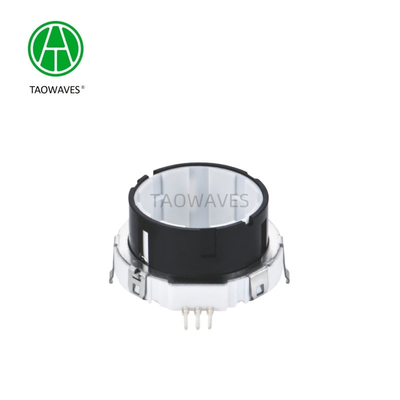

Custom Shaft Encoder with Dual Button Rotary Input
  • name
  • name
  • name
  • name
  • name
  • name

Custom Shaft Encoder with Dual Button Rotary Input

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC35C10V01
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Package:
-
Installation Form:
-
Brand:
Taowaves
Axonia:
-
Customized:
Support Customization
Transport Package:
Carton
Specification:
35mm
Trademark:
TAOWAVES
Origin:
China
Customization:
Available
Type:
Rotary Encoder
Working Principle:
Incremental
Highlight:

Rotary Input Shaft Encoder

,

Button Shaft Encoder

,

Rotary Input Custom Shaft Encoder

Product Description
Hollow Encoder 35mm Rotary Frequency Modulation Incremental Encoder For Audio Induction Cooker Function
Custom Shaft Encoder with Dual Button Rotary Input 0
EC35 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 10pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 16≥5.0ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 10~30mN.m.(100~300gf.cm)

3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -30ºC to 80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
Custom Shaft Encoder with Dual Button Rotary Input 1Custom Shaft Encoder with Dual Button Rotary Input 2Custom Shaft Encoder with Dual Button Rotary Input 3Application:
Custom Shaft Encoder with Dual Button Rotary Input 4

Custom Shaft Encoder with Dual Button Rotary Input 5
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
