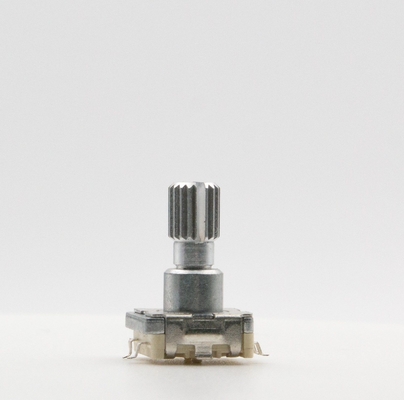

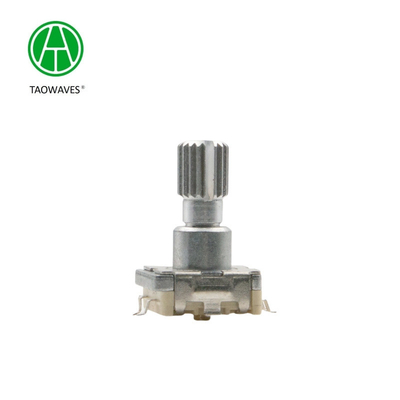

Durable Rotary Encoder Reset Switch for Professional Audio Devices

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

Durable Rotary Encoder Reset Switch for Professional Audio Devices

Detail Information

Product Description

Detail Information

Certification:

ISO

Document:

Product Brochure PDF

Model NO.:

RS11B11R03

Standard:

Standard

Structure:

Self-Reset

Operation:

Knob

Condition:

New

Customized:

Support Customization

Factory Attributes:

ODM

Transport Package:

Carton

Specification:

11mm

Trademark:

TAOWAVES

Origin:

China

Customization:

Available

Rotary Number:

Single Button

Usage:

Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products

Highlight:

Reset Rotary Encoder Switch

Audio Devices Rotary Encoder Switch

Durable Rotary Encoder Switch

Product Description

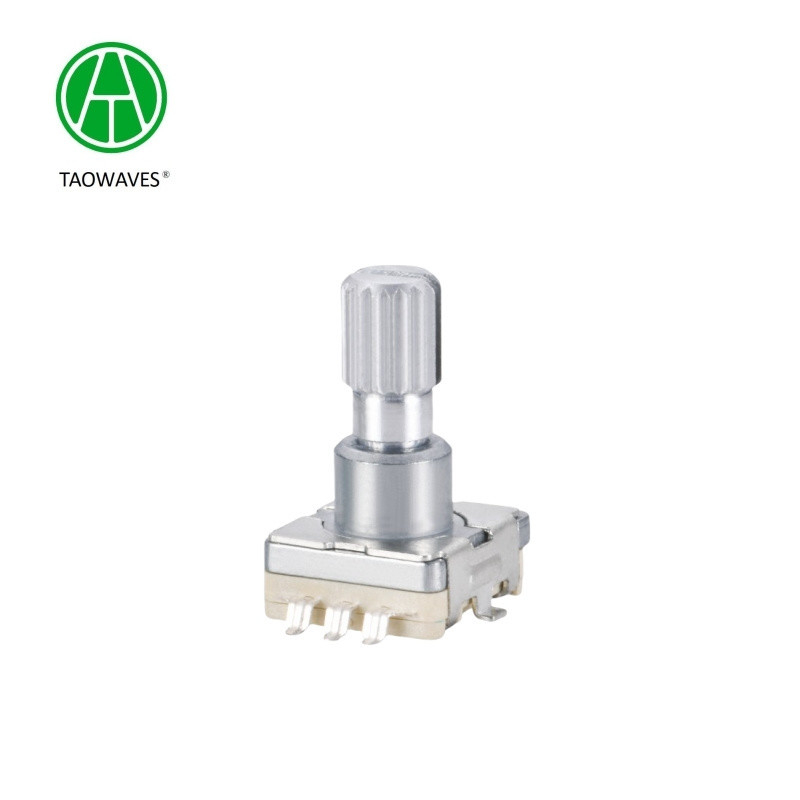

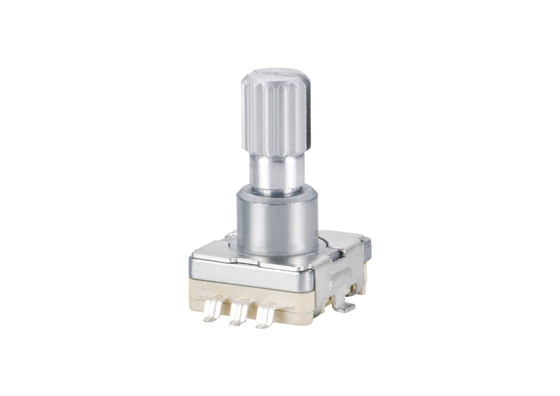

11mm Rotary Type Reset Switch for Audio
RS11 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resistive load:	10mA
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC 300V
Switching characteristics:	S.P.D.T Automatic reset

2.Mechanical Characteristics
Total ratational angle:	90°±5°
Detent torque:	3~20mN.m.(30~200gf.cm)
End stop strength:	3.0Kgf Min
Shaft wobble:	0.7*L/30mm p-p Max
Push-Pull Strength of shaft	8KG
Operation fore of switch:	500±200gf
Travel of switch:	0.5±0.3 mm

3.Endurance Characteristics
Rotational life:	15,000cycles
Push-life:	20,000cycles
Operating temperature range:	-30ºC to+80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
Durable Rotary Encoder Reset Switch for Professional Audio Devices 1

Application:
Durable Rotary Encoder Reset Switch for Professional Audio Devices 4

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
