Rotary Band Switch

Precision Rotary Encoder with Reset Function and Sturdy Knob for Audio Gear

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

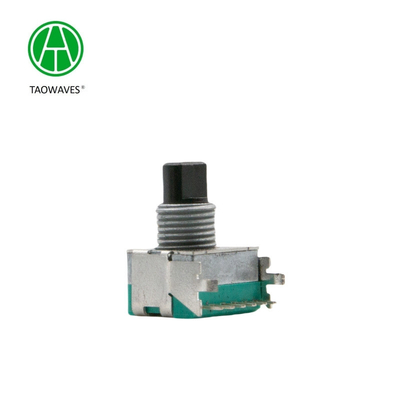

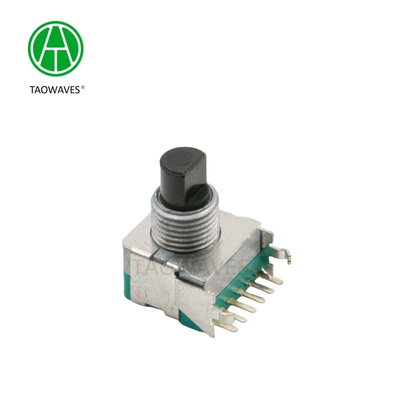

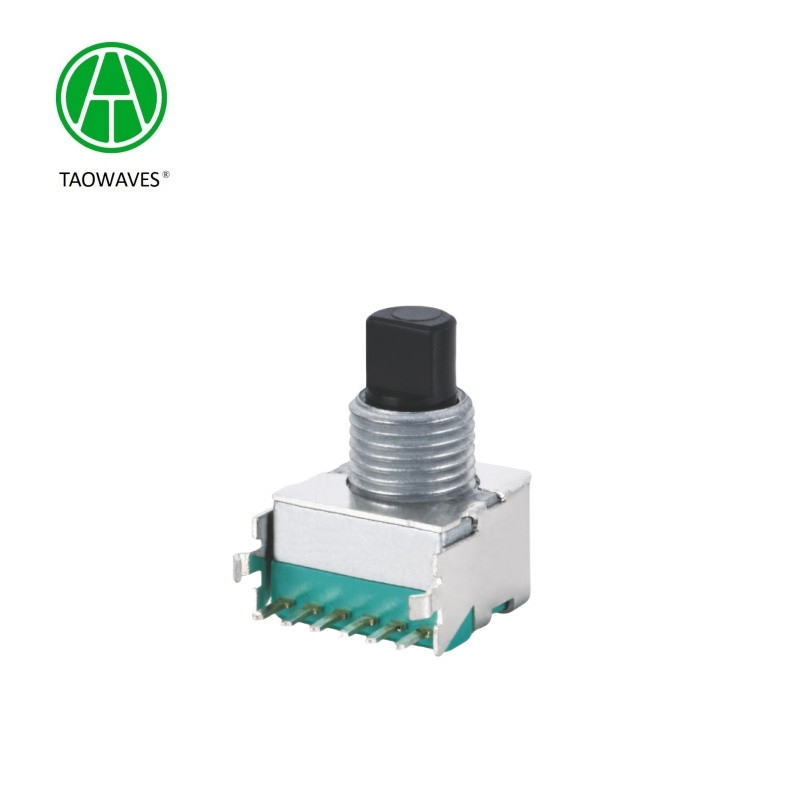

Precision Rotary Encoder with Reset Function and Sturdy Knob for Audio Gear

Detail Information

Product Description

Detail Information

Certification:

ISO

Document:

Product Brochure PDF

Model NO.:

RS12011H05

Standard:

Standard

Structure:

Self-Reset

Operation:

Knob

Condition:

New

Customized:

Support Customization

Factory Attributes:

ODM

Positions:

2-12

Transport Package:

Carton

Specification:

12mm

Trademark:

TAOWAVES

Origin:

China

Customization:

Available

Rotary Number:

Single Button

Usage:

Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products, Home Appliances

Highlight:

Sturdy Knob Precision Rotary Encoder

Audio Gear Precision Rotary Encoder

Reset Function Precision Rotary Encoder

Product Description

Multiway Switch Rotary Route Switch 12mm 2-12Positions Switch
RS12 Rotary switch Series

1.Electrical Characteristics
Switch circuit and Number of pulse	2 Poles,6 Sections
Rated voltage:	DC 16V
Maximum operating current:	0.3A
Insulation resistance:	100MΩ Min at DC 500V
Dielectric strength:	1 minute at AC 1300V

2.Mechanical Characteristics
Changeover angle:	30°±3°
Rotational torque:	100-800gf.cm
Shaft wobble:	0.7*L/30mm p-p Max
Push-Pull Strength of shaft	10KG
End stop strength:	6.0Kgf.cm Max

3.Endurance Characteristics
Rotational life:	10,000cycles
Operating temperature range:	-20ºC to+70ºC
Storage temperature range:	-30ºC to+80ºC

Our Factory
Precision Rotary Encoder with Reset Function and Sturdy Knob for Audio Gear 1

Application:
Precision Rotary Encoder with Reset Function and Sturdy Knob for Audio Gear 4

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
