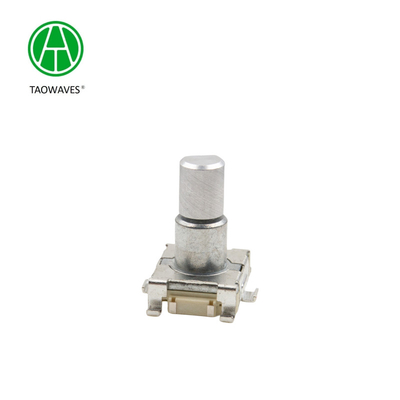

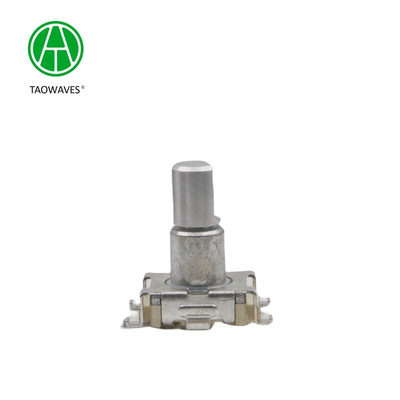

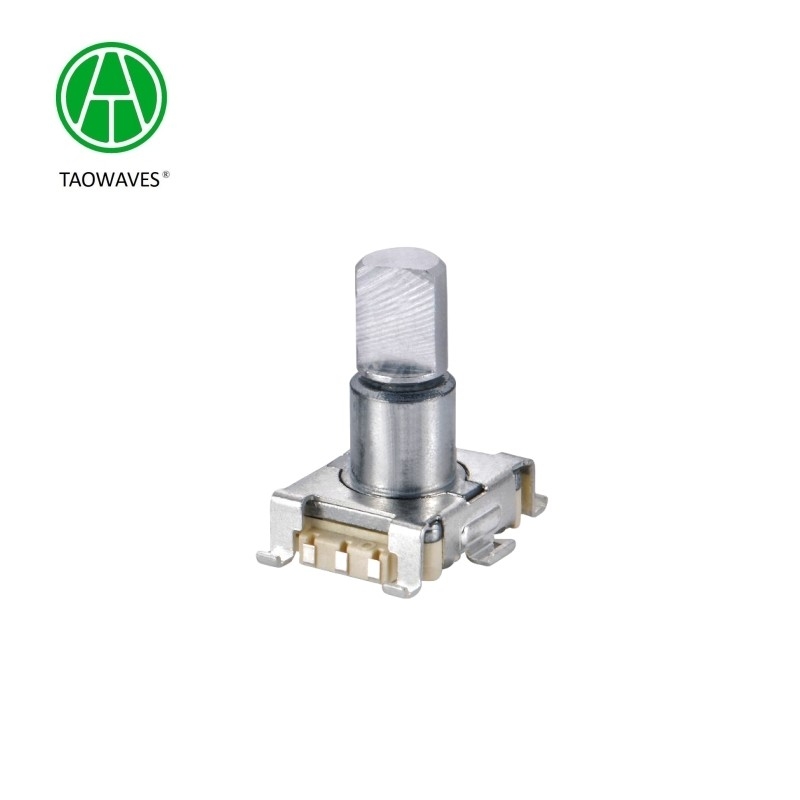

Ec11 Metal Shaft Incremental Rotary Encoder With Push Switch For Home Appliances

Brand Name:	TAOWAVES
Model Number:	EC11A01R05
MOQ:	2000pcs
Price:	0.3~0.39USD
Packaging Details:	Blister tray inside, carton outside
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001,IATF16949

Document:

Shaft Type:

Metal Shaft

Working Principle:

Incremental

Size:

Operating Life:

30000cycles

Pulses:

15/20

Switch Travel:

0.5mm

Type:

Rotary Encoder,Incremental

Detent:

0/20/30

Supply Ability:

8,000,000pcs/Month

Highlight:

switch rotary encoder

Ec11 Shaft Incremental Rotary Encoder

rotary encoder with push switch

Product Description

EC11 Metal Shaft Incremental Rotary Encoder With Push Switch For Home Appliances

Product Description

EC11 Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	15/20pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	15P≥5.6ms / 20P≥4.0ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	2～15mN.m.(20～150gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	8KG
Operation fore of switch:	500±200gf
Travel of switch:	0.5±0.3 mm

3.Endurance Characteristics
Rotational life:	30,000cycles
Push-life:	30,000cycles
Operating temperature range:	-30℃ to+80℃
Storage temperature range:	-40℃ to+85℃

Our Factory:

Application:

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
