Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

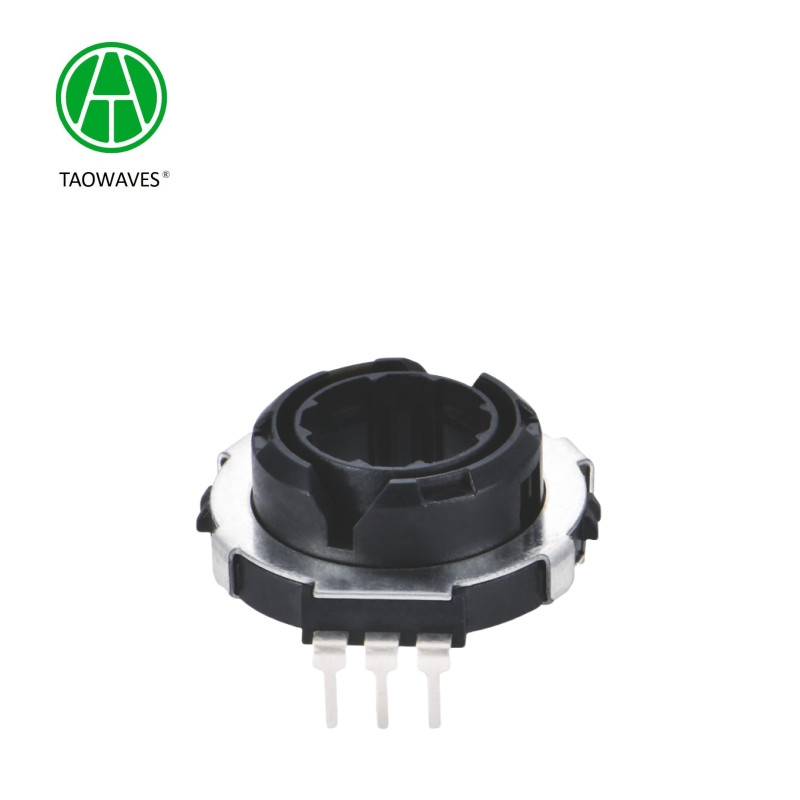

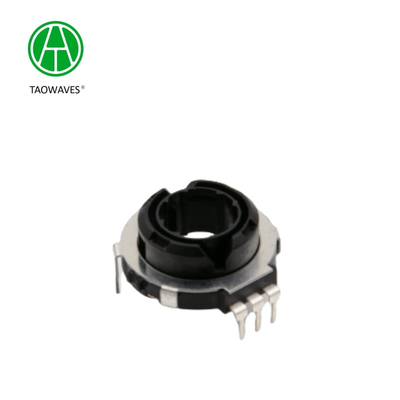

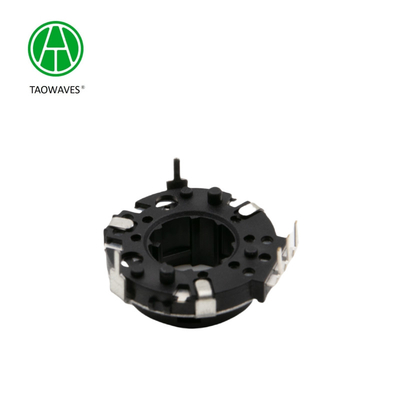

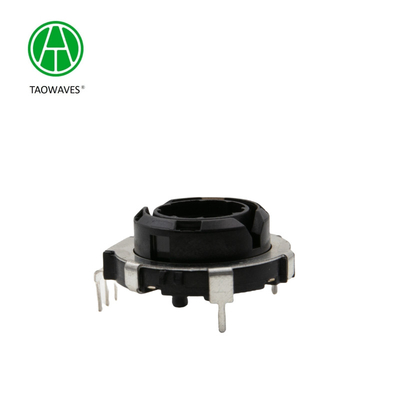

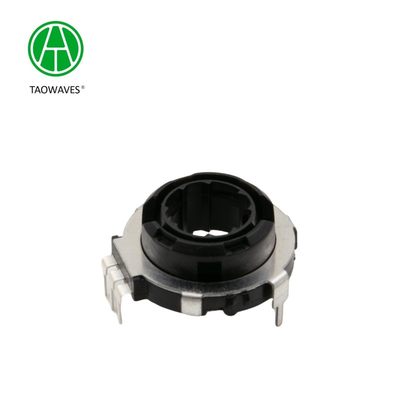

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling
  • name
  • name
  • name
  • name
  • name

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling

Brand Name: TAOWAVES
Model Number: EC25A00V01
MOQ: 2,000pcs
Price: 0.22~0.3USD
Packaging Details: Blister tray inside, Carton outside
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
DongGuan,China
Certification:
IATF16949 and ISO9001
Document:
Product Brochure PDF
Shaft Type:
Hollow Shaft
Size:
25mm
Pulses:
10/20
Deten:
20
Working Principle:
Incremental
Rotational Life:
30000cycles
Detent Torque:
3～15mN.m.(30～150gf.cm)
Resolution:
10/20pulses/360°
Supply Ability:
7,000,000pcs/Month
Highlight:

Ring Encoder Hollow Shaft

,

Encoder Hollow Shaft 25mm

,

25mm Rotary Encoder

Product Description

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling


Product Description

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling 0


EC25 Product Specifications

Rated voltage: DC 5V
Resolution: 10/20pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 10≥8ms / 20≥4.0ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 3～15mN.m.(30～150gf.cm)

3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -30℃ to+80℃
Storage temperature range: -40℃ to+85℃



Our Factory:

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling 1

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling 2

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling 3
Application:

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling 4

Ring Encoder Hollow Shaft 25mm Rotary Encoder With Rotate Detent Feeling 5



FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
