Insulated Shaft Encoder

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

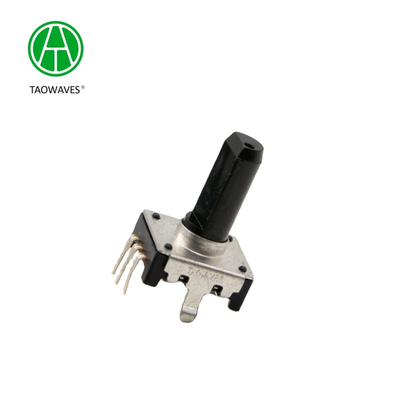

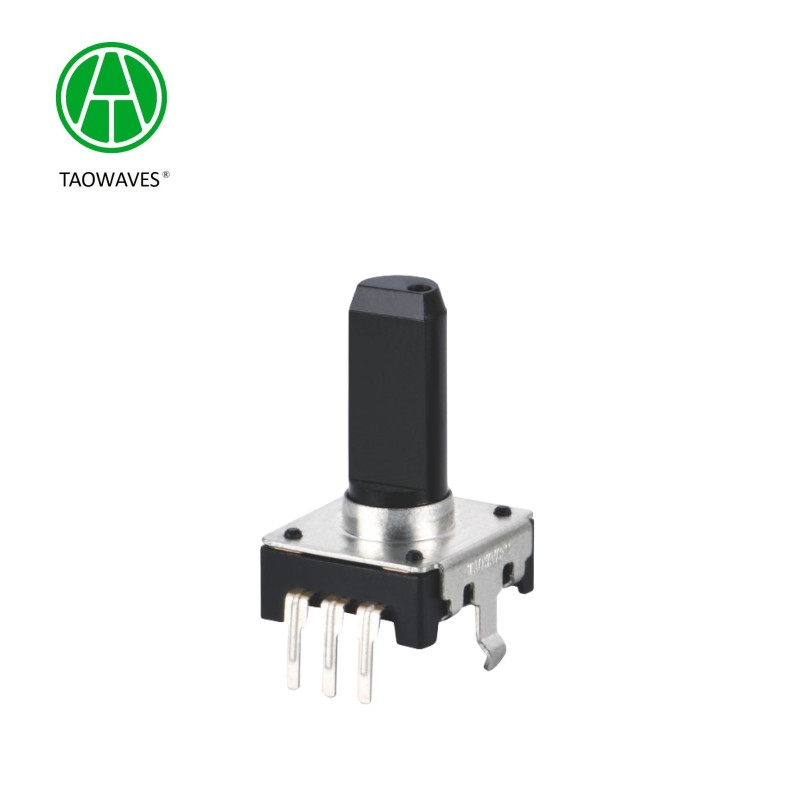

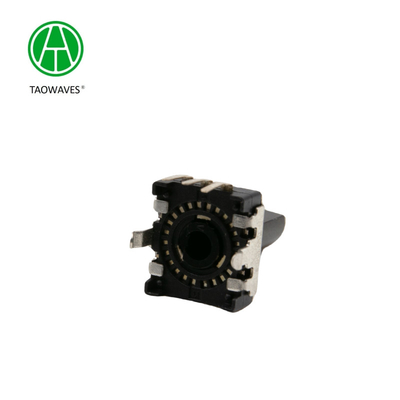

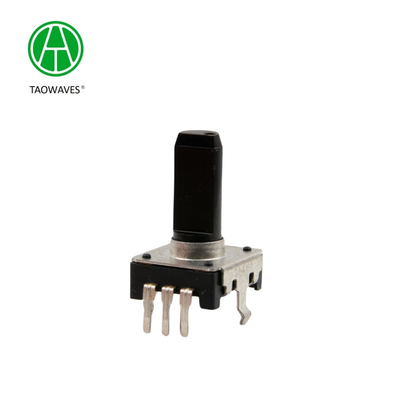

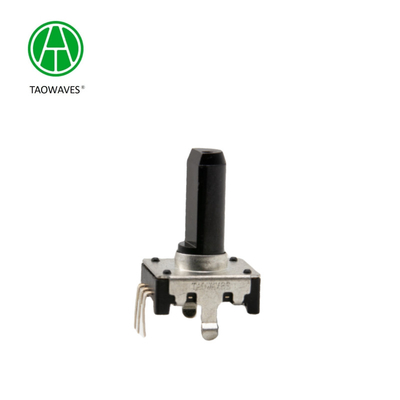

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances

Brand Name:	Taowaves
Model Number:	EC12A00V01
MOQ:	2K
Price:	usd0.11~0.2
Packaging Details:	Blister tray inside, carton outside
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

ISO9001 and IATF16949

Document:

Shaft Type:

Plastic Insulated Shaft

Size:

Pulses:

12/24

Detent:

0/12/24

Working Principle:

Incremental

Life:

30000cycles

Supply Voltage:

5V DC

Operating Temperature:

-10°C To 70°C

Protection Level:

Supply Ability:

5,000,000pcs/Month

Highlight:

solid shaft rotary encoder

rotary shaft encoder

rotary encoder shaft

Product Description

12mm Plastic Insulated Shaft Rotary Encoder Without Switch for Small Appliances

Product Description

12mm Plastic Insulated Solid Rotary Shaft Encoder Without Switch For Small Appliances 0

EC12 Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	12/24pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	12≥6.7ms / 24≥3.4ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	3～15mN.m.(30～150gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	8KG

3.Endurance Characteristics
Rotational life:	30,000cycles
Operating temperature range:	-30℃ to+80℃
Storage temperature range:	-40℃ to+85℃

Our Factory:

Application:

Choose us as your ODM partner for a seamless, end-to-end custom manufacturing experience that turns your vision into reality. Contact us today to discuss your project and discover how we can help bring your product ideas to life.

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
