Good price online

products details

Home > Products >
Multiway Switch
>
Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

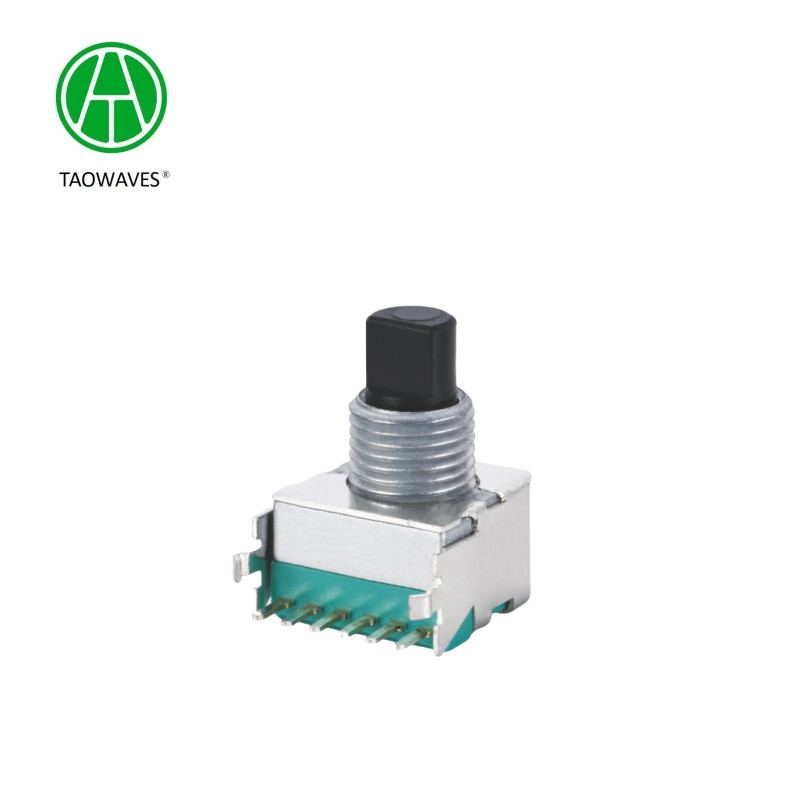

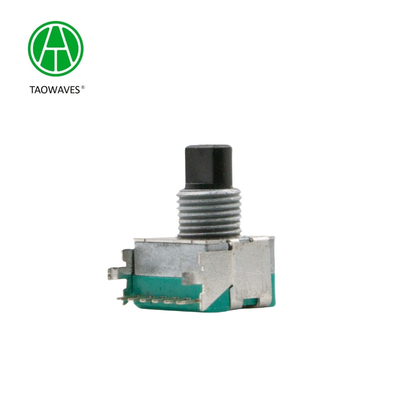

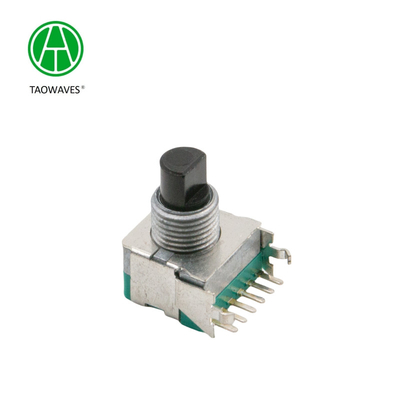

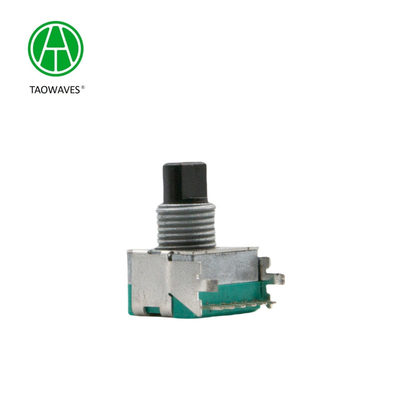

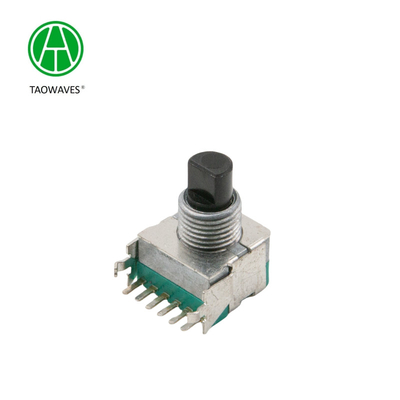

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch
  • name
  • name
  • name
  • name
  • name
  • name

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch

Brand Name: TAOWAVES
Model Number: RS12011H05
MOQ: 2000pcs
Price: usd0.35~0.42
Packaging Details: Blister tray inside, Carton outside
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
IATF16949,ISO9001
Document:
Product Brochure PDF
Shaft Type:
Plastic Shaft
Size:
12mm
Switch:
Not
Operating Life:
10000cycles
Factory Attributes:
ODM
Customized:
Support Customization
Positions:
2-12
Supply Ability:
3,500,000pcs/Month
Highlight:

12mm positions Switch

,

2 Poles Multiway Switch

,

6 Sections Multiway Switch

Product Description

Multiway Switch Rotary Route Switch 12mm Positions Switch 2 Poles 6 Sections

Product Description

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch 0


RS12 Product Specifications



1.Electrical Characteristics
Switch circuit and Number of pulse 2 Poles,6 Sections
Rated voltage: DC 16V
Maximum operating current: 0.3A
Insulation resistance: 100MΩ Min at DC 500V
Dielectric strength: 1 minute at AC 1300V

2.Mechanical Characteristics
Changeover angle: 30°±3°
Rotational torque: 100-800gf.cm
Shaft wobble: 0.7*L/30mm p-p Max
Push-Pull Strength of shaft 10KG
End stop strength: 6.0Kgf.cm Max

3.Endurance Characteristics
Rotational life: 10,000cycles
Operating temperature range: -20℃ to+70℃
Storage temperature range: -30℃ to+80℃




Our Factory:

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch 1

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch 2

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch 3
Application:

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch 4

ODM:

Rotary Route Switch 12mm positions Switch 2 Poles 6 Sections Multiway Switch 5



FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
