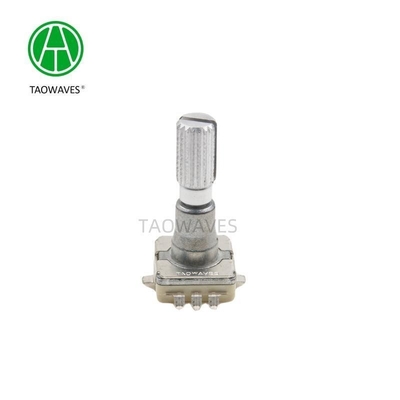

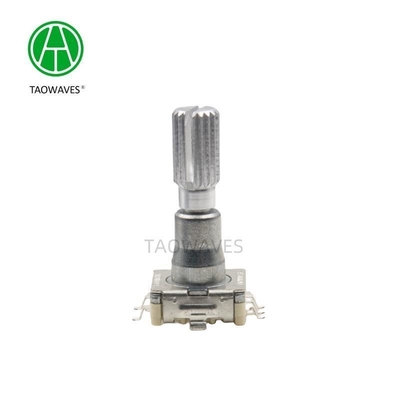

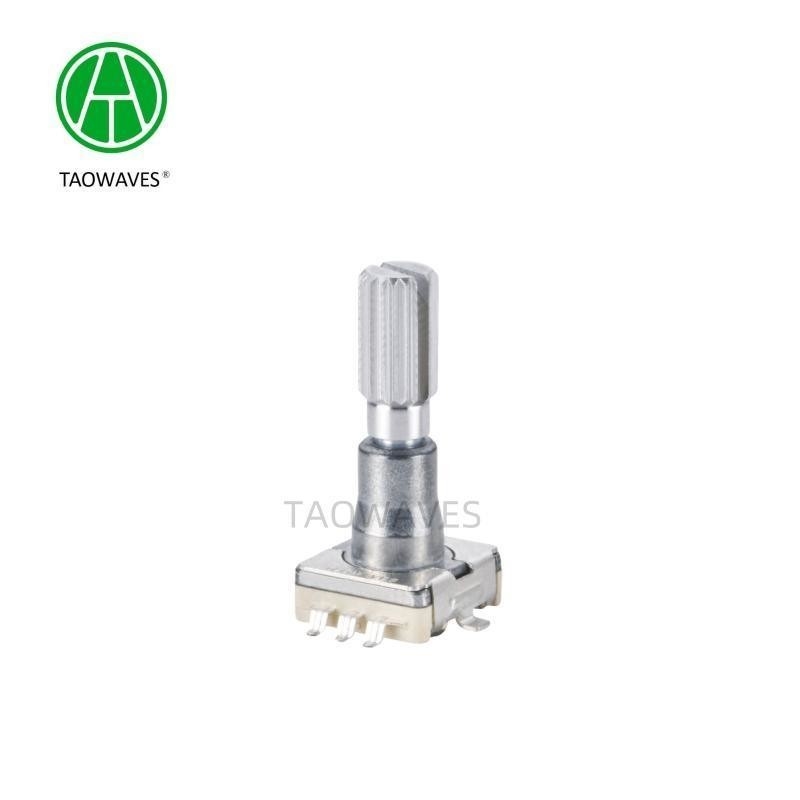

Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft
  • name
  • name
  • name
  • name
  • name
  • name

Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC11A01R03
Package:
-
Installation Form:
Axle Sleeve Type
Brand:
Taowaves
Axonia:
-
Transport Package:
Carton
Specification:
11mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

incremental encoder

,

incremental shaft encoder

,

rotary encoder incremental

Product Description

EC11 Rotary Incremental Switch Encoder with Long Switch Travel Metal Shaft
EC11A01R03
Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft 0




Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft 1

Incremental Encoder
Size: 11mm
Switch Travel: 0.5mm
Pulses: 15/20
Number of detent: 0/20/30
Rotational life: 30000cycles

EC11 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 15/20pulses/360°
Insulation resistance:  100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference:  15P≥5.6ms / 20P≥4.0ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 2~15mN.m.(20~150gf.cm)
Shaft wobble:  0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft 8KG
Operation fore of switch: 500±200gf
Travel of switch:  0.5±0.3 mm

3.Endurance Characteristics
Rotational life:  30,000cycles
Push-life:  30,000cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC

Our Factory
Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft 2Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft 3Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft 4

Ec11 Shaft Incremental Rotary Encoder With Long Switch Travel Metal Shaft 5
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
Tags:

incremental encoder

incremental shaft encoder

rotary encoder incremental
