Good price online

products details

Home > Products >
Incremental Encoder
>
Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear And Rotary Encoder
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

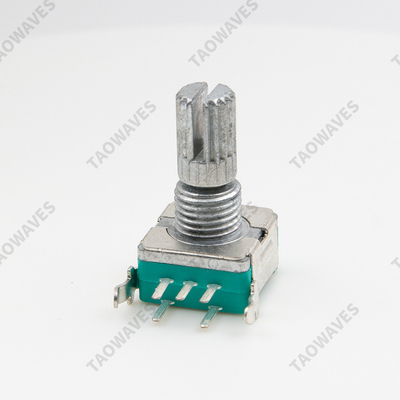

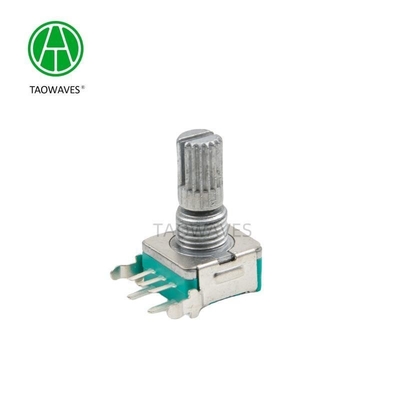

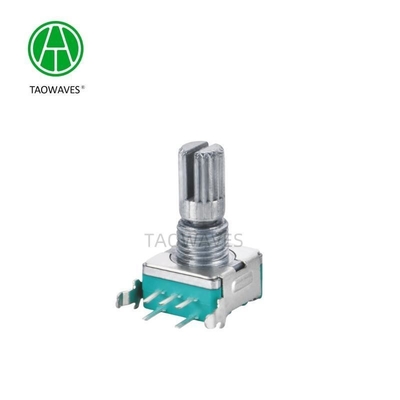

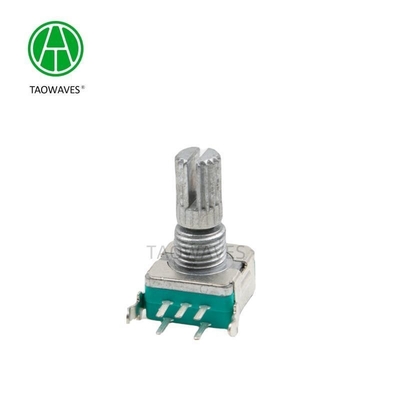

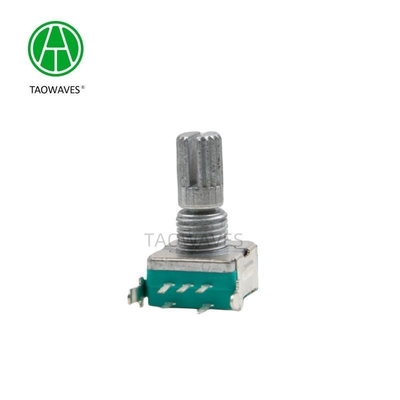

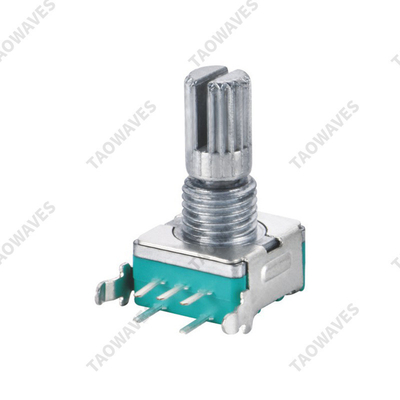

Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear And Rotary Encoder
  • name
  • name
  • name
  • name
  • name
  • name

Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear And Rotary Encoder

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC11D13H01
Package:
-
Installation Form:
Axle Sleeve Type
Brand:
Taowaves
Axonia:
-
Transport Package:
Carton
Specification:
11mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

Ec11 Horizontal Installation Encoder

,

linear and rotary encoder

,

linear rotary encoder

Product Description
EC11 Horizontal Installation Encoder 3 feet D handle
Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear Encoder
EC11 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 15/20pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 15≥5.6ms / 20≥4.0ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 2~15mN.m.(20~150gf.cm)
Shaft wobble: 0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft 8KG
Operation fore of switch: 500±200gf
Travel of switch: 0.5±0.3 mm

3.Endurance Characteristics
Rotational life: 30,000cycles
Push-life: 30,000cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC

Our Factory
Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear EncoderEc11 Horizontal Installation Encoder 3 Feet D Handle Linear EncoderEc11 Horizontal Installation Encoder 3 Feet D Handle Linear Encoder

Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear Encoder
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
