Good price online

products details

Home > Products >
Incremental Encoder
>

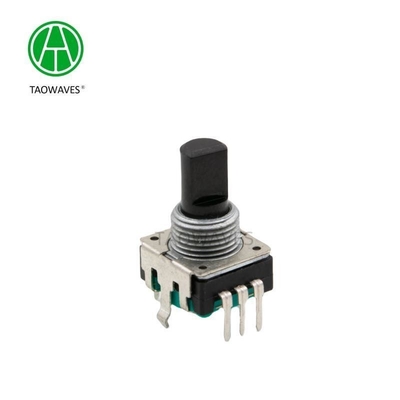

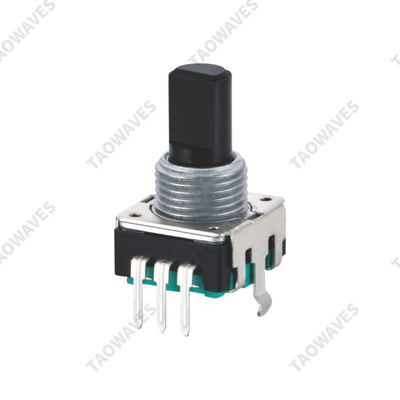

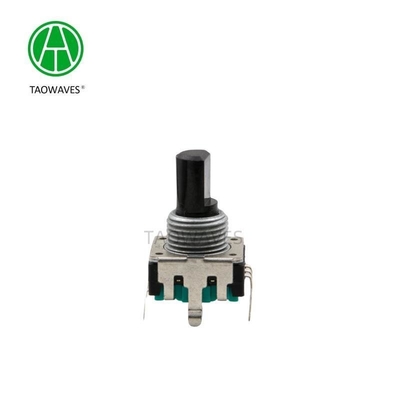

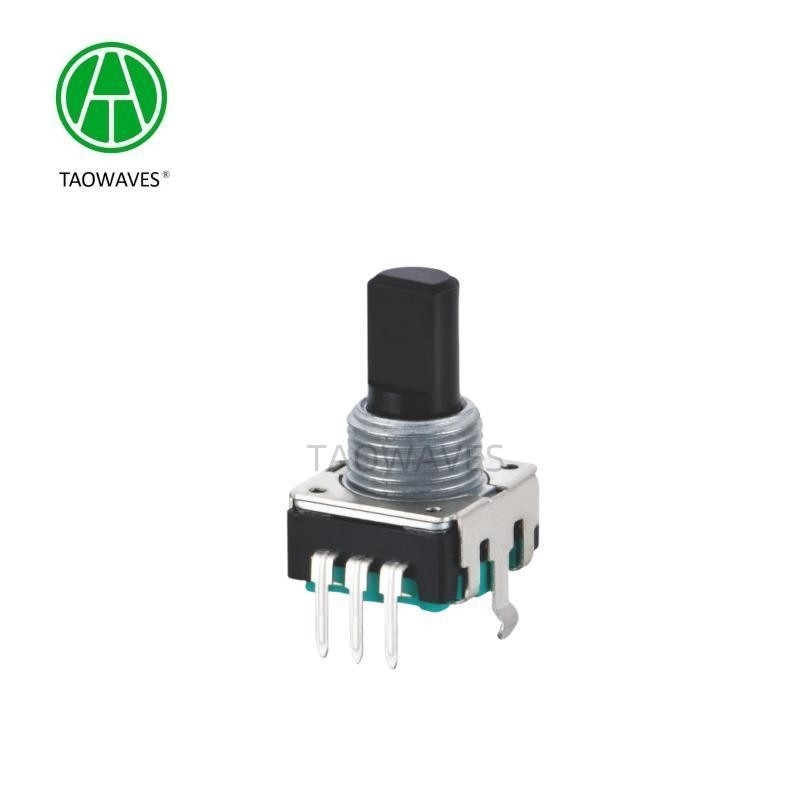

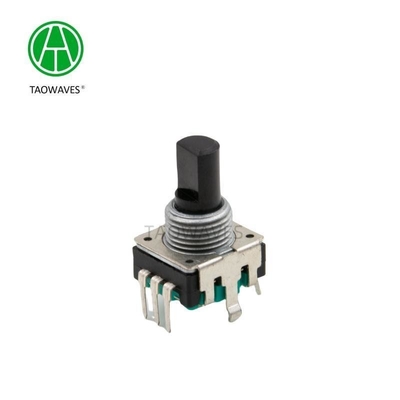

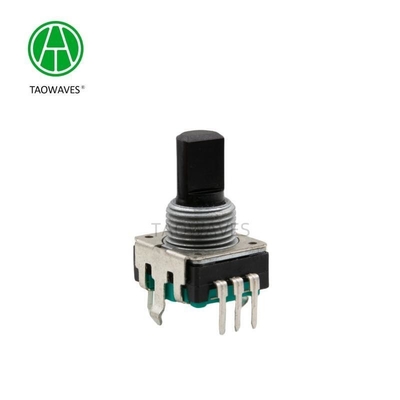

12mm 3 Pin Incremental Encoder Switch For Audio Devices Contact Readout Mode
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now
12mm 3 Pin Incremental Encoder Switch For Audio Devices Contact Readout Mode
  • name
  • name
  • name
  • name
  • name
  • name

12mm 3 Pin Incremental Encoder Switch For Audio Devices Contact Readout Mode

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC12C31V02
Package:
-
Installation Form:
Axle Sleeve Type
Brand:
Taowaves
Axonia:
-
Transport Package:
Carton
Specification:
12mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

12mm 3 Pin Incremental Encoder

,

Incremental Encoder Switch

,

Incremental Encoder 12mm

Product Description
12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices
12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices
EC12 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 12/24pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 12≥6.7ms / 24≥3.4ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 3~15mN.m.(30~150gf.cm)
Shaft wobble: 0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft 8KG
Operation fore of switch: 500±200gf / 1000±200gf
Travel of switch: 0.5±0.3 mm

3.Endurance Characteristics
Rotational life: 30,000cycles
Push-life: 20,000cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio DevicesApplication:
12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices

12mm 3-Pin Encoder Switch with Plastic Handle Rotary Encoder Switch for Audio Devices
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.


Tags:

10mm Rotary Encoder

Hollow Shaft Rotary Encoder fEC28B10V02

11mm Rotary Encoder

Related Products
EC11 Dual Shaft Rotary Encoder Switch Double Metal Shaft Encoder

EC11 Dual Shaft Rotary Encoder Switch Double Metal Shaft Encoder

Get Best Price
EC07 SMT Rotary Encoder With Push Button 7mm Incremental Miniature Rotary

EC07 SMT Rotary Encoder With Push Button 7mm Incremental Miniature Rotary

Get Best Price
EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel

EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel

Get Best Price
11mm Metal Shaft Rotary Incremental Encoder Switch Contact Readout Mode 360 Degree

11mm Metal Shaft Rotary Incremental Encoder Switch Contact Readout Mode 360 Degree

Get Best Price
15mm Plastic Shaft Incremental Rotary Encoder For Volume Control Within 12/24 Pulses

15mm Plastic Shaft Incremental Rotary Encoder For Volume Control Within 12/24 Pulses

Get Best Price
High Precision Incremental Encoder Ip67 12mm Audio Volume Encoder Sound Control

High Precision Incremental Encoder Ip67 12mm Audio Volume Encoder Sound Control

Get Best Price
12mm EC12A00V01 Plastic Shaft Rotary Encoder For Small Appliances Without Switch

12mm EC12A00V01 Plastic Shaft Rotary Encoder For Small Appliances Without Switch

Get Best Price
Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear And Rotary Encoder

Ec11 Horizontal Installation Encoder 3 Feet D Handle Linear And Rotary Encoder

Get Best Price
