Good price online

products details

Home > Products >
Hollow Shaft Encoder
>
Ec21 Hollow Shaft Incremental Rotary Encoder 21mm Ring Encoder
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

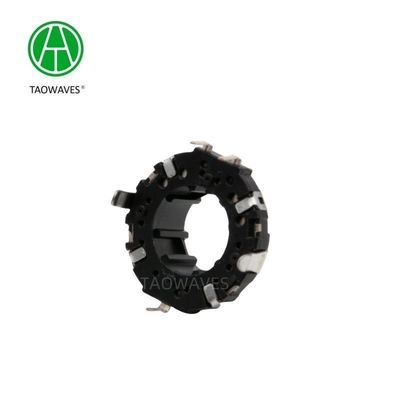

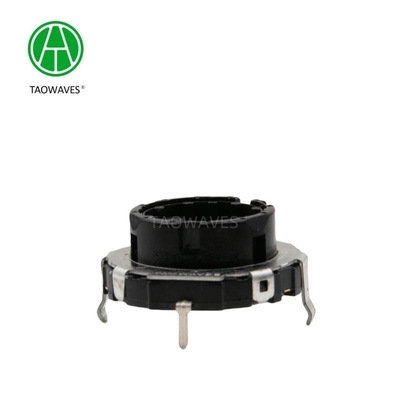

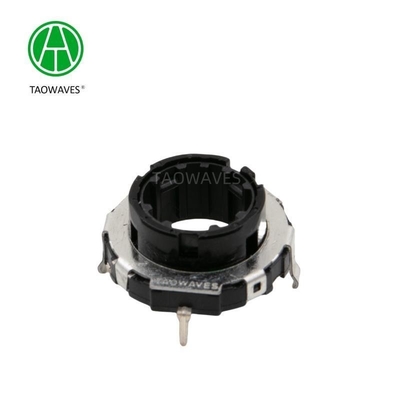

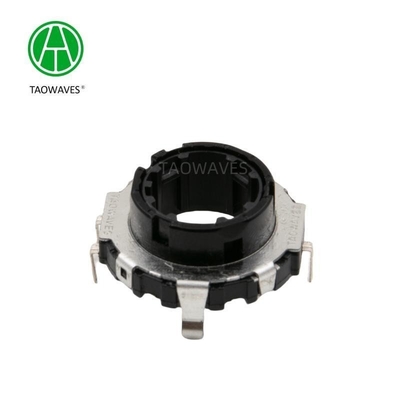

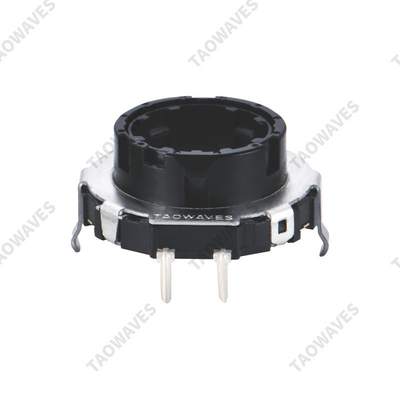

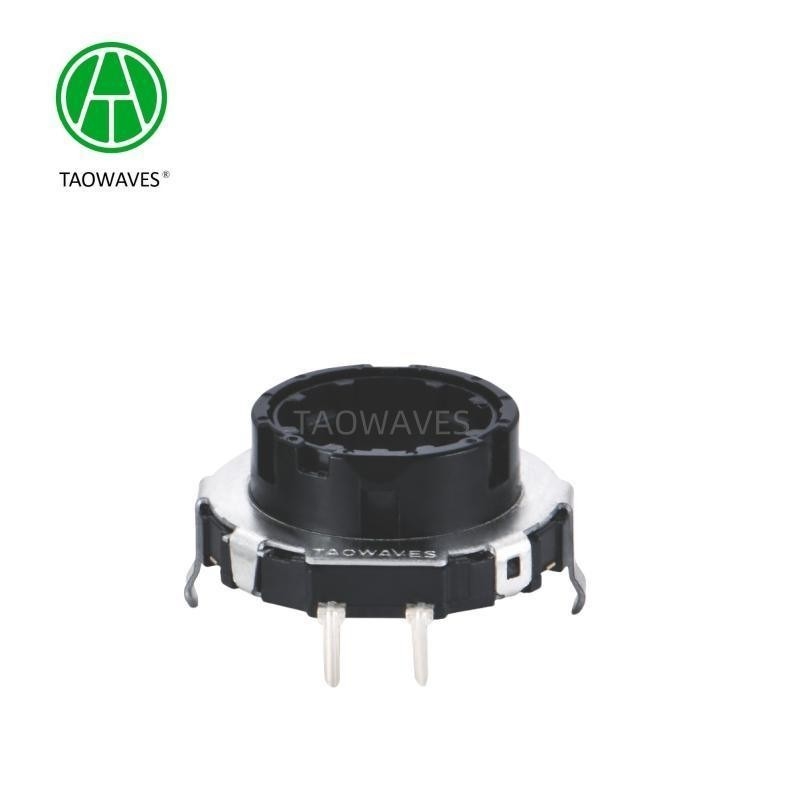

Ec21 Hollow Shaft Incremental Rotary Encoder 21mm Ring Encoder
  • name
  • name
  • name
  • name
  • name
  • name

Ec21 Hollow Shaft Incremental Rotary Encoder 21mm Ring Encoder

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC21A00V02
Package:
-
Installation Form:
-
Brand:
Taowaves
Axonia:
-
Customized:
Support Customization
Transport Package:
Carton
Specification:
21mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

hollow shaft incremental rotary encoder

,

Ec21 rotary encoder

,

rotary encoder 21mm

Product Description
EC21 Hollow Shaft Incremental Encoder 21mm Ring Encoder
Ec21 Hollow Shaft Incremental Encoder 21mm Ring Encoder
EC21 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 15pulses/360°
Insulation resistance: 100MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference: 15≥5.6ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 5~30mN.m.(100~300gf.cm)

3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
Ec21 Hollow Shaft Incremental Encoder 21mm Ring EncoderEc21 Hollow Shaft Incremental Encoder 21mm Ring EncoderEc21 Hollow Shaft Incremental Encoder 21mm Ring EncoderApplication:
Ec21 Hollow Shaft Incremental Encoder 21mm Ring Encoder

Ec21 Hollow Shaft Incremental Encoder 21mm Ring Encoder
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
