Good price online

products details

Home > Products >
Ring Encoder
>
Absolute Ring Encoder 43mm Incremental Hollow Rotary Encoder
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

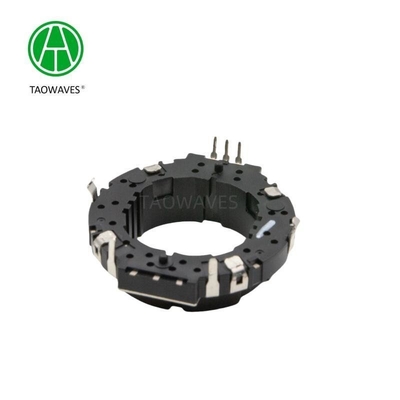

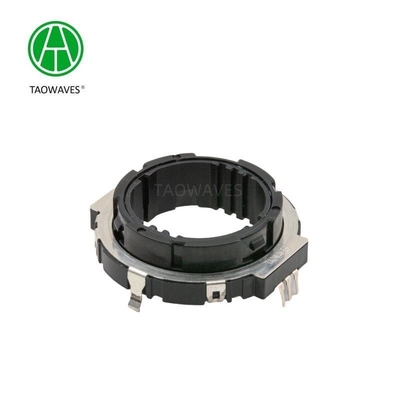

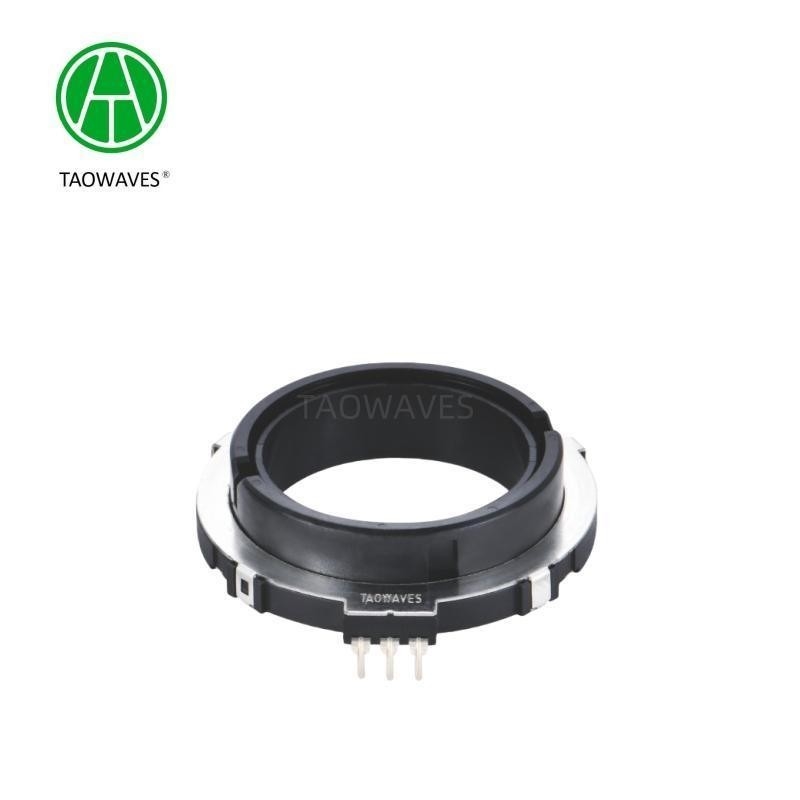

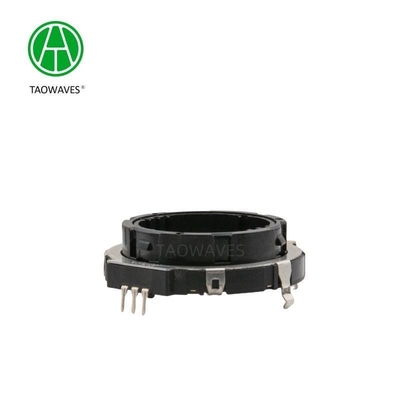

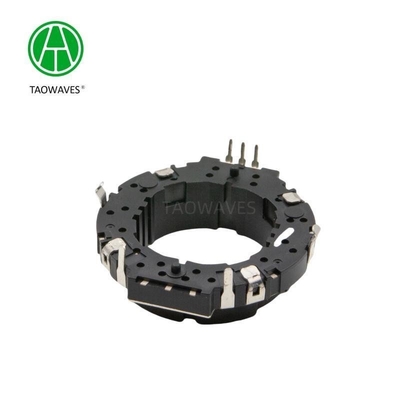

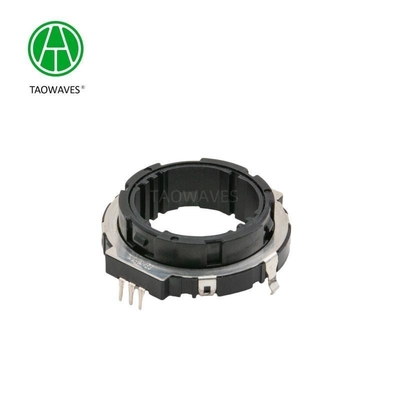

Absolute Ring Encoder 43mm Incremental Hollow Rotary Encoder
  • name
  • name
  • name
  • name
  • name
  • name

Absolute Ring Encoder 43mm Incremental Hollow Rotary Encoder

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC43A00V01
Package:
-
Installation Form:
-
Brand:
Taowaves
Axonia:
-
Customized:
Support Customization
Transport Package:
Carton
Specification:
43mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

absolute ring encoder

,

rotary ring encoder

,

Hollow rotary ring encoder

Product Description
43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder
43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder
EC43 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 14pulses/360°
Insulation resistance: 10MΩ Min at DC 110V
Dielectric strength: 1 minute at AC110V
Phase Difference: 20≥4.0ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 17.5±12.5mN.m.(175±125gf.cm)
Push-Pull Strength of shaft 10KG

3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -20ºC to 80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft EncoderApplication:
43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder

43mm Incremental Rotary Hollow Encoder Ring Encoder Customized Hollow Shaft Encoder
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
