Good price online

products details

Home > Products >
Absolute Encoders
>
16mm Absolute Position Rotary Encoder For Car Air Conditioning Installation Form Axle Sleeve
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now

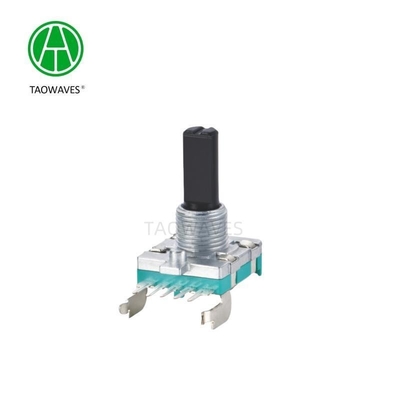

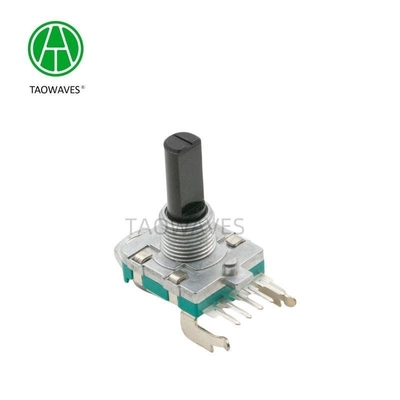

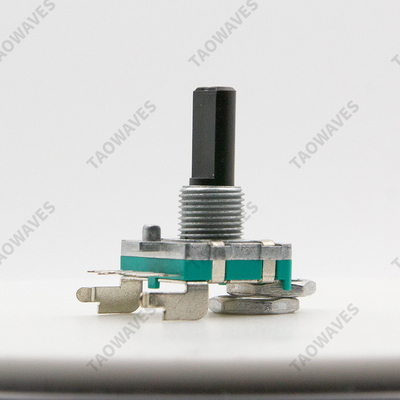

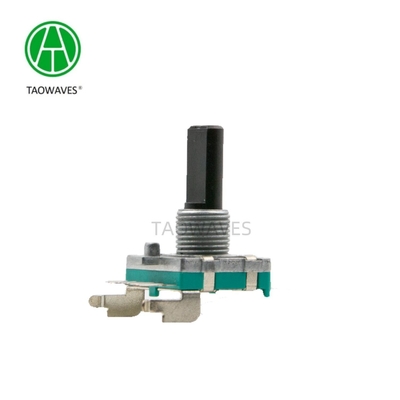

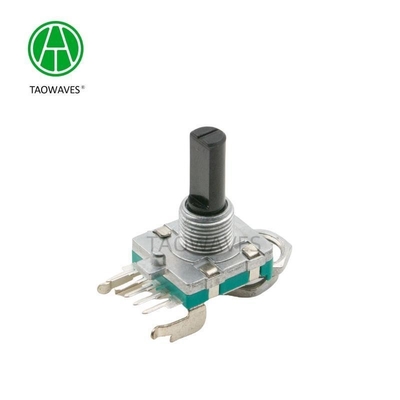

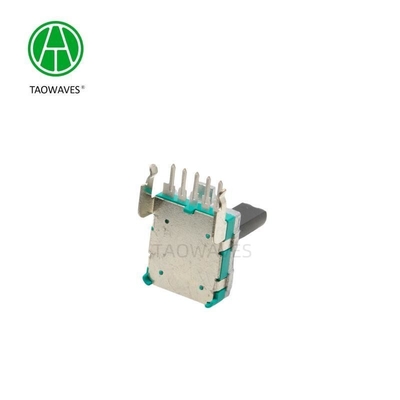

16mm Absolute Position Rotary Encoder For Car Air Conditioning Installation Form Axle Sleeve
  • name
  • name
  • name
  • name
  • name
  • name

16mm Absolute Position Rotary Encoder For Car Air Conditioning Installation Form Axle Sleeve

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
ES16B00H01
Installation Form:
Axle Sleeve Type
Customized:
Support Customization
Factory Attributes:
ODM
Transport Package:
Carton
Specification:
16mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Absolute
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

16mm Absolute Rotary Encoder

,

rotary absolute encoder

,

absolute position rotary encoder

Product Description
16mm Absolute Rotary Encoder for Car Air Conditioning Use
16mm Absolute Rotary Encoder for Car Air Conditioning Use
ES16 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Rated current : 1mA (Resistance loading)
 Max. operating current: 2.5mA (Resistance loading)
Resolution: 16pulses/360°
Insulation resistance: 10MΩ Min at DC 50V
Dielectric strength: 1 minute at AC 50V
Channel: 16 Channel

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Number and position of detent: 16detents Step angle:22.5°±5°
Detent torque: 5~35mN.m.(50~350gf.cm)
Shaft wobble: 0.8*L/30mm p-p MAX
Push-Pull Strength of shaft 8KG

3.Endurance Characteristics
Rotational life: 30,000cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
16mm Absolute Rotary Encoder for Car Air Conditioning Use16mm Absolute Rotary Encoder for Car Air Conditioning Use16mm Absolute Rotary Encoder for Car Air Conditioning UseApplication:
16mm Absolute Rotary Encoder for Car Air Conditioning Use

16mm Absolute Rotary Encoder for Car Air Conditioning Use
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
