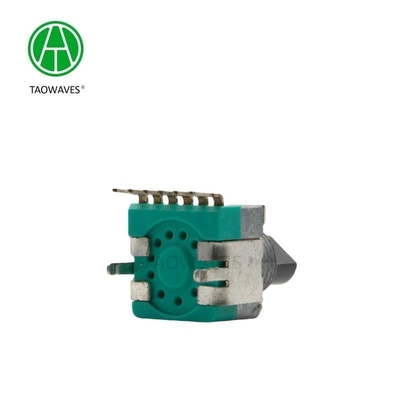

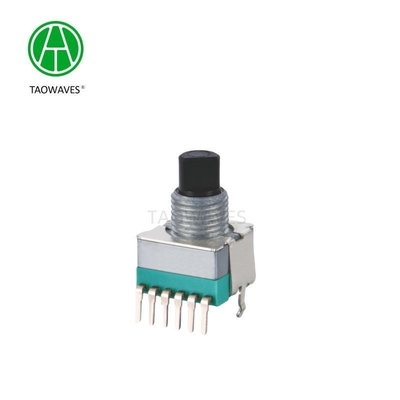

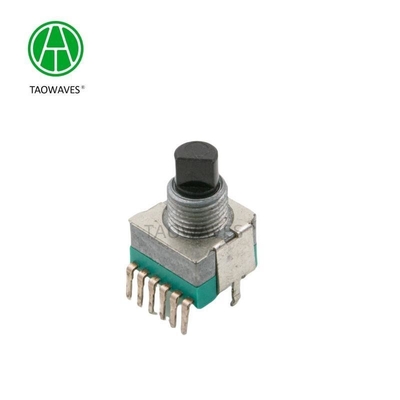

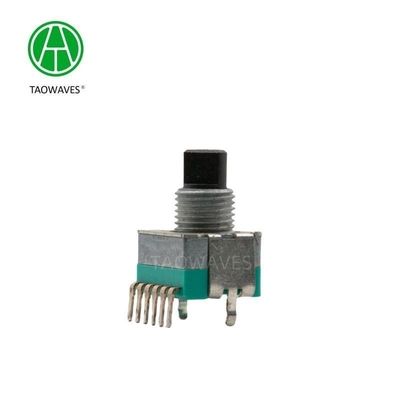

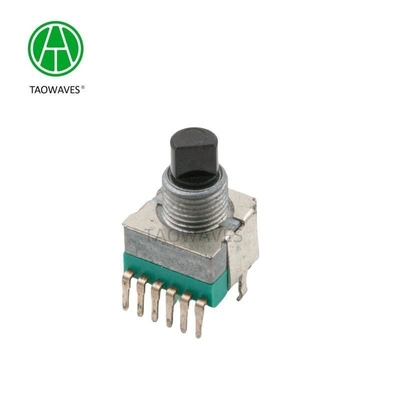

12mm Self Reset RS12 Rotary Route Switch for Speed Control Long Lasting Structure
  • name
  • name
  • name
  • name
  • name
  • name

12mm Self Reset RS12 Rotary Route Switch for Speed Control Long Lasting Structure

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
RS12011V05
Condition:
New
Customized:
Support Customization
Factory Attributes:
ODM
Positions:
2-12
Transport Package:
Carton
Specification:
12mm
Trademark:
TAOWAVES
Origin:
China
Rotary Number:
Single Button
Usage:
Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products, Home Appliances
Standard:
Standard
Structure:
Self-Reset
Operation:
Knob
Certification:
ISO
Customization:
Available | Customized Request
Highlight:

12mm Rotary Switch

,

RS12 Rotary Route Switch

,

Rotary Route Switch Speed Control

Product Description
RS12 Rotary Route Switch for Speed Control
RS12 Rotary Route Switch for Speed Control
RS12 Rotary switch Series
1.Electrical  Characteristics
Switch circuit and Number of pulse2 Poles,6 Sections
Rated voltage:DC 16V
Maximum operating current:0.3A
Insulation resistance:100MΩ Min at DC 500V
Dielectric strength:1 minute at AC 1300V

2.Mechanical Characteristics
Changeover angle:30°±3°
Rotational torque:100-800gf.cm
Shaft wobble:0.7*L/30mm p-p Max
Push-Pull Strength of shaft10KG
End stop strength:6.0Kgf.cm Max

3.Endurance Characteristics
Rotational life:10,000cycles
Operating temperature range:-20ºC to+70ºC
Storage temperature range:-30ºC to+80ºC

Our Factory
RS12 Rotary Route Switch for Speed ControlRS12 Rotary Route Switch for Speed ControlRS12 Rotary Route Switch for Speed ControlApplication:
RS12 Rotary Route Switch for Speed Control
RS12 Rotary Route Switch for Speed Control
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.

Tags:

12 Positions Position Switch

Multiway Switch Insulated Shaft

2 Poles Multiway Switch
