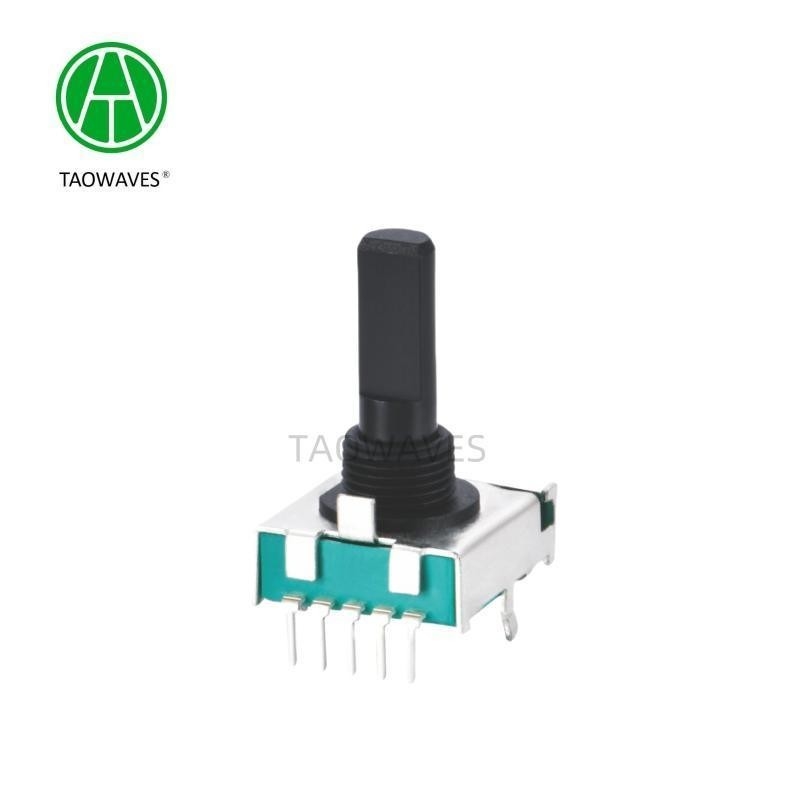

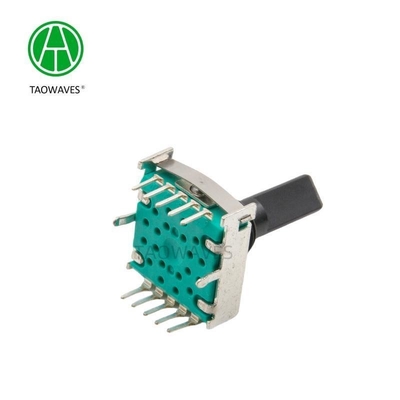

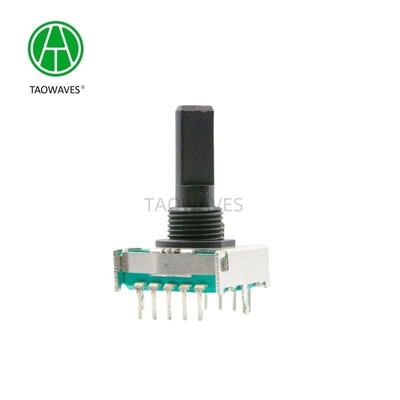

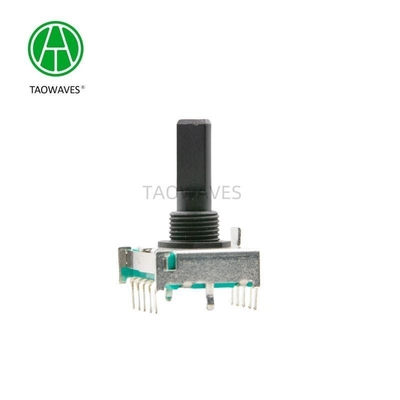

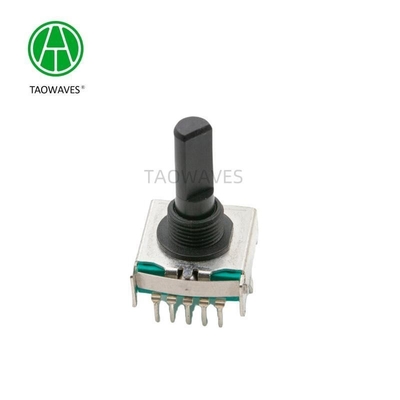

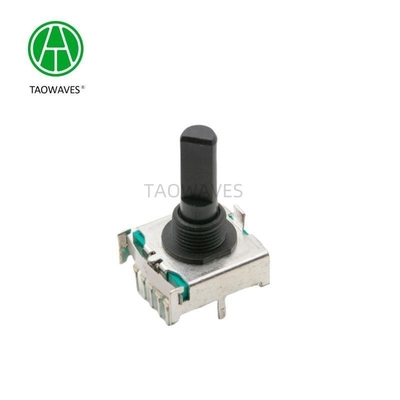

17mm Household Appliances Multiway Control Switch with Knob Operation 2-9 Positions
All Category

Rotary Encoder

Incremental Encoder

Hollow Shaft Encoder

Absolute Encoders

Ring Encoder

Metal Shaft Encoder

Insulated Shaft Encoder

Reset Switch

Multiway Switch

Potentiometer
Contact Us
Miss. Zabie.Xie
zabie@taowaves.com
+86 19107690150
Contact Now
17mm Household Appliances Multiway Control Switch with Knob Operation 2-9 Positions
  • name
  • name
  • name
  • name
  • name
  • name

17mm Household Appliances Multiway Control Switch with Knob Operation 2-9 Positions

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
RS17030V01
Condition:
New
Customized:
Support Customization
Factory Attributes:
ODM
Positions:
2-9
Transport Package:
Carton
Specification:
17mm
Trademark:
TAOWAVES
Origin:
China
Rotary Number:
Single Button
Usage:
Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products, Home Appliances
Standard:
Standard
Structure:
Self-Reset
Operation:
Knob
Certification:
ISO
Customization:
Available | Customized Request
Highlight:

17mm Multiway Switch

,

17mm Multiway Control Switch

,

Multiway Control Switch 9 Positions

Product Description
17mm Multiway Control Switch for Household Appliances
17mm Multiway Control Switch for Household Appliances
RS17 Rotary switch Series
1.Electrical  Characteristics
Switch circuit and Number of pulse 1 Poles,3 Sections
Rated voltage: DC 16V
Maximum operating current: 0.3A
Insulation resistance: 100MΩ Min at DC 500V
Dielectric strength: 1 minute at AC 500V

2.Mechanical Characteristics
Total ratational angle: 30°/45°/53°/60°/75°/90°
Rotational torque: 10-60mN.m.(100-600gf.cm)
Shaft wobble: 0.7*L/30mm p-p Max
Push-Pull Strength of shaft 10KG
End stop strength: 6.0Kgf.cm Min

3.Endurance Characteristics
Rotational life: 10,000cycles
Operating temperature range: -10ºC to+70ºC
Storage temperature range: -30ºC to+80ºC


Our Factory
17mm Multiway Control Switch for Household Appliances17mm Multiway Control Switch for Household Appliances17mm Multiway Control Switch for Household AppliancesApplication:
17mm Multiway Control Switch for Household Appliances

17mm Multiway Control Switch for Household Appliances
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
