Multiway Switch

Multi Loop Multi Tap Rotary Switch with Button Support Customization and Standard

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

Multi Loop Multi Tap Rotary Switch with Button Support Customization and Standard

Brand Name:	TAOWAVES
Model Number:	RS17011V01
MOQ:	10,000pcs
Price:	0.6~0.75usd
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

IATF16949 ISO9001:2016

Document:

Customized:

Support Customization

Factory Attributes:

Positions:

Transport Package:

Carton

Specification:

Trademark:

TAOWAVES

Origin:

China

Rotary Number:

Single Button

Usage:

Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products, Home Appliances

Standard:

Standard

Structure:

Self-Reset

Supply Ability:

6,500,000pcs/Month

Highlight:

Multi Tap Rotary Switch

Multi Loop Rotary Switch

Button Switch

Product Description

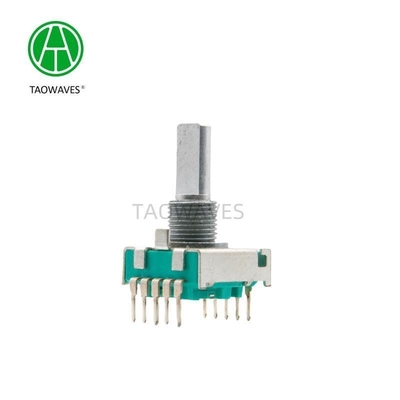

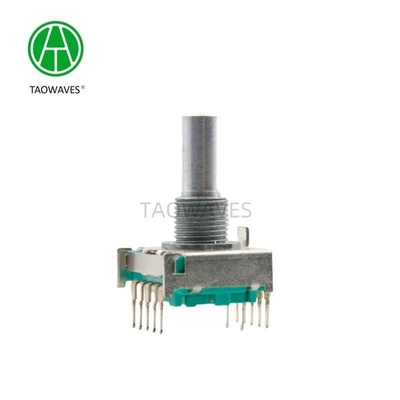

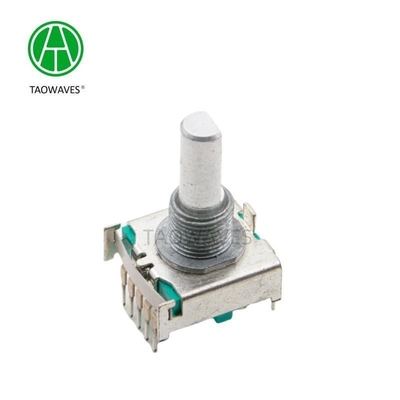

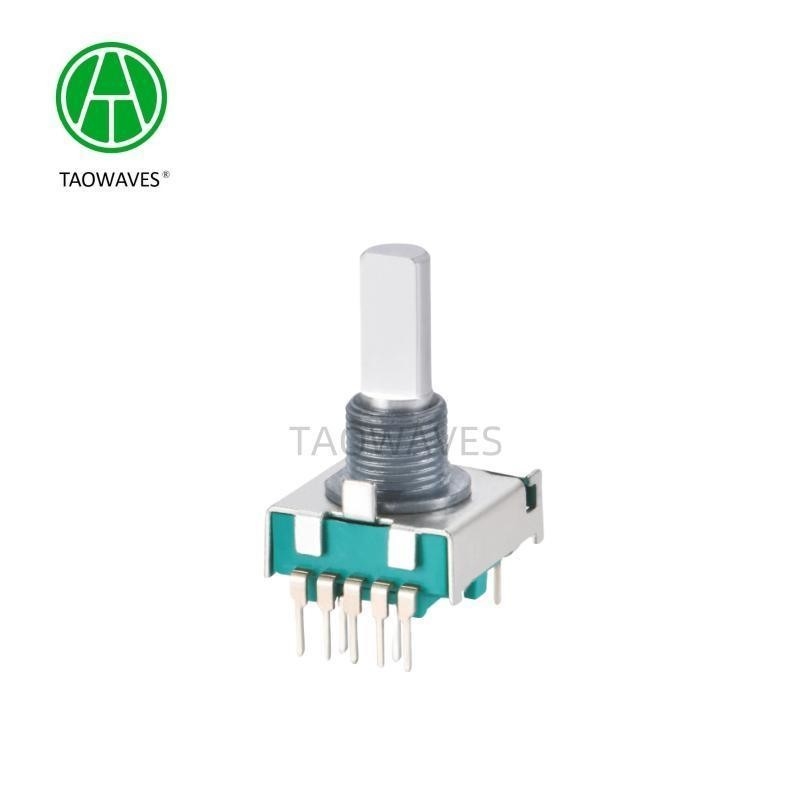

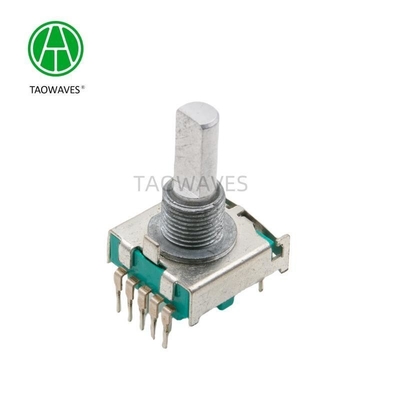

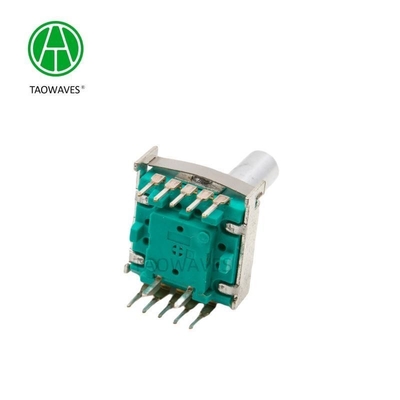

Metal Handle Multi-Loop Multi-Tap Rotary Switch with Button

RS17 Rotary switch Series

1.Electrical Characteristics
Switch circuit and Number of pulse	1 Poles,3 Sections
Rated voltage:	DC 16V
Maximum operating current:	0.3A
Insulation resistance:	100MΩ Min at DC 500V
Dielectric strength:	1 minute at AC 500V

2.Mechanical Characteristics
Total ratational angle:	30°/45°/53°/60°/75°/90°
Rotational torque:	10-60mN.m.(100-600gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max
Push-Pull Strength of shaft	10KG
End stop strength:	6.0Kgf.cm Min

3.Endurance Characteristics
Rotational life:	10,000cycles
Push-life:	20,000cycles
Operating temperature range:	-10ºC to+70ºC
Storage temperature range:	-30ºC to+80ºC

Our Factory
Metal Handle Multi-Loop Multi-Tap Rotary Switch with Button

Application:
Metal Handle Multi-Loop Multi-Tap Rotary Switch with Button

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
