Rotary Encoder

Encoder Dynapar Compatible with Shaft Input and Button

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

Encoder Dynapar Compatible with Shaft Input and Button

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

EC40B00V01

Readout Mode:

Contact

Operating System:

Contact Brush Type

Signal Output:

Voltage Output

Axle Sleeve Type:

Empty Type

Package:

Installation Form:

Brand:

Taowaves

Axonia:

Customized:

Support Customization

Transport Package:

Carton

Specification:

40mm

Trademark:

TAOWAVES

Origin:

China

Customization:

Available

Type:

Rotary Encoder

Working Principle:

Incremental

Highlight:

Button Encoder Dynapar

Shaft Input Encoder Button

Shaft Input Encoder Dynapar

Product Description

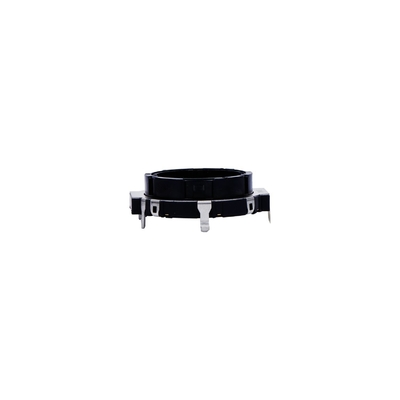

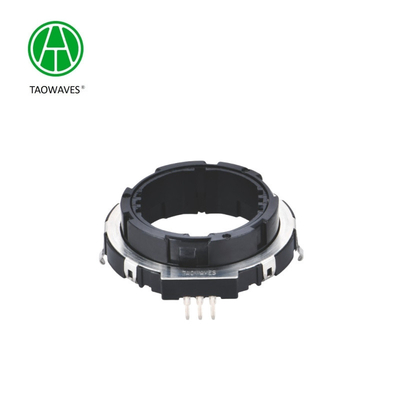

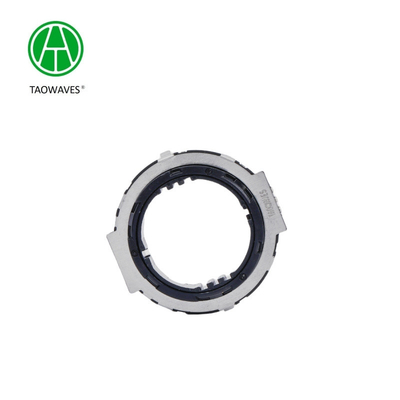

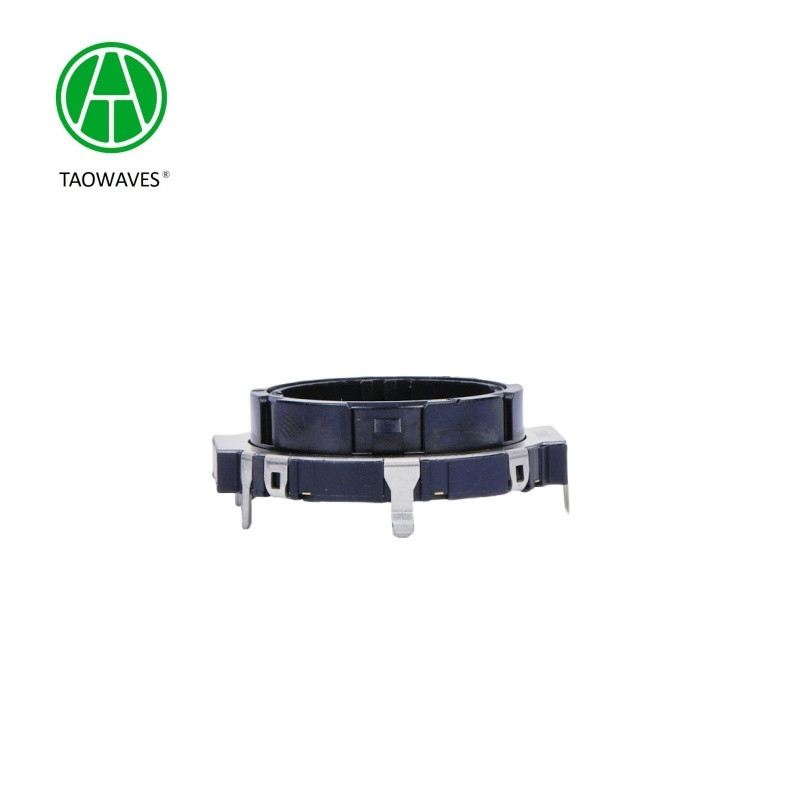

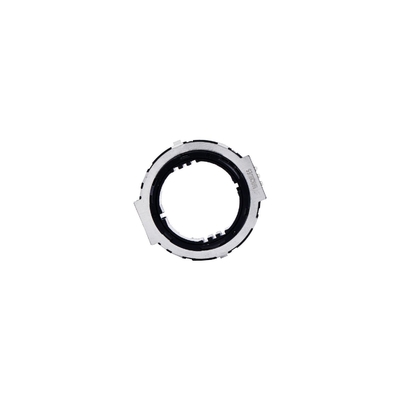

Best Quality 40mm Hollow Shaft Encoder Incremental Encoder for Home Appliances

EC40 Series Product Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	14pulses/360°
Insulation resistance:	100MΩ Min at DC 250V
Dielectric strength:	1 minute at AC300V
Phase Difference:	14≥5.7ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	20±10mN.m.(200±100gf.cm)
Shaft wobble:	300gf
Push-Pull Strength of shaft	10KG

3.Endurance Characteristics
Rotational life:	30,000cycles
Operating temperature range:	-40ºC to 85ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
Encoder Dynapar Compatible with Shaft Input and Button 1

Application:
Encoder Dynapar Compatible with Shaft Input and Button 4

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
