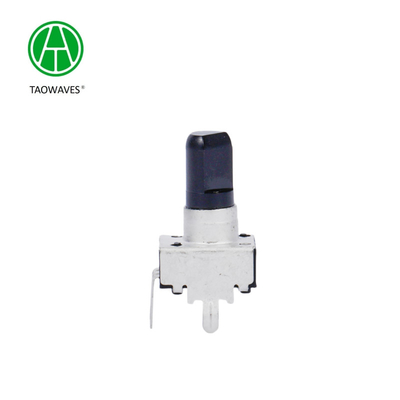

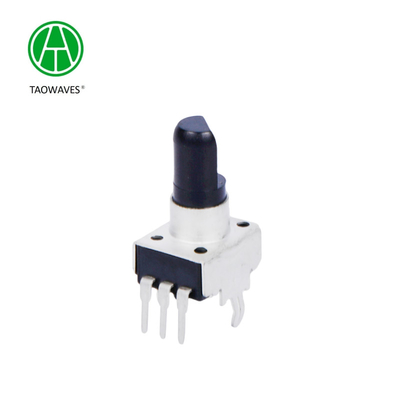

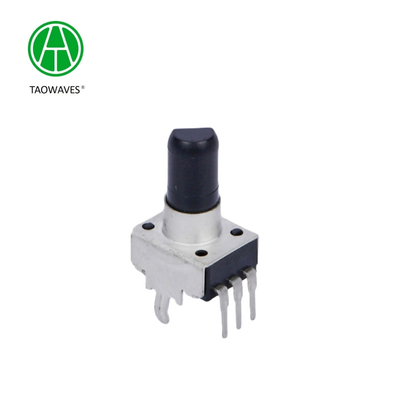

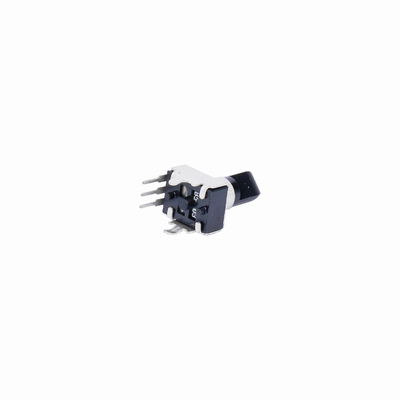

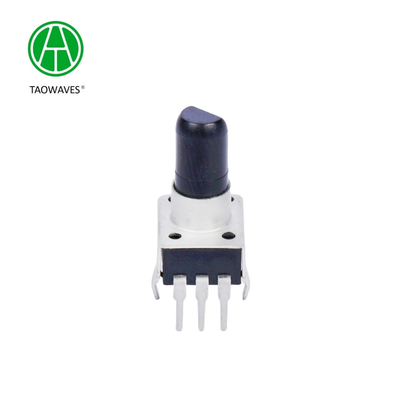

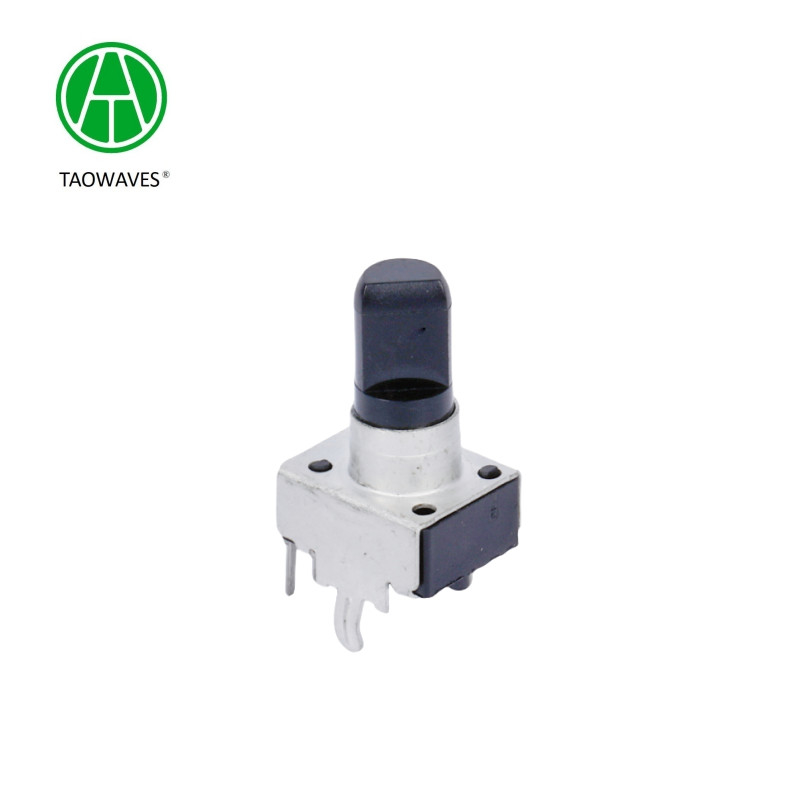

RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K

Brand Name: TAOWAVES
Model Number: RP093010V01
MOQ: 2000pcs
Price: usd0.35~0.42
Packaging Details: Blister tray inside, Carton outside
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
GuangDong,China
Certification:
IATF16949,ISO9001
Document:
Product Brochure PDF
Shaft Type:
Plastic Shaft
Size:
9mm
Operating Life:
10000cycles
Factory Attributes:
ODM
Customized:
Support Customization
Trademark:
TAOWAVES Or Not
Supply Ability:
3,500,000pcs/Month
Highlight:

RP09 digital Rotary Potentiometer

,

digital Rotary Potentiometer 9mm

,

hollow shaft rotary potentiometer

Product Description

RP09 Rotary Potentiometer 9mm Insulated Shaft with Locating Point B5K 50K
Product Description
RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K 0
RP093 Product Specifications

1.Electrical Characteristics
Total ResistanceB10 KΩ (Terminal1~3)
Rated VoltageAC 50V DC 20V
NoiseLess than 100mV
Insulation100 MΩMax
Dielectric strength:1 minute at AC 250V

2.Mechanical Characteristics
Total ratational angle:280±5°
Rotational torque10～100gf.cm
Click Torque30～150 gf.cm
Shaft wobble:0.8*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft5KG
Stopper Strength0.3N.m(3.0kgf.cm) Min


3.Endurance Characteristics
Rotational life:10,000cycles
Operating temperature range:-10℃ to +70℃
Storage temperature range:-30℃ to+80℃



Our Factory:
RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K 1
RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K 2
RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K 3
Application:
RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K 4
Suggestions for order
When choosing potentiometers, please pay attention to the following items:
1.External dimensions and designation.
2.Usage.
3.Nominal resistance value and permissible deviation
4.Regular pattern ofresistance.
5.Whether soft positioning is provided.
6.Rated power or operational voltage.
7. Because of constant improvement or other reasons, the designation, external dimensions and performance index ofthe actual productsmay be difterent from that in this catalogue. For any change,please see the external figure and parameters in the Specification Table attach
ed to the sample.
RP09 digital Rotary Potentiometer 9mm Insulated hollow Shaft Locating Point B5K 50K 5

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
