Potentiometer

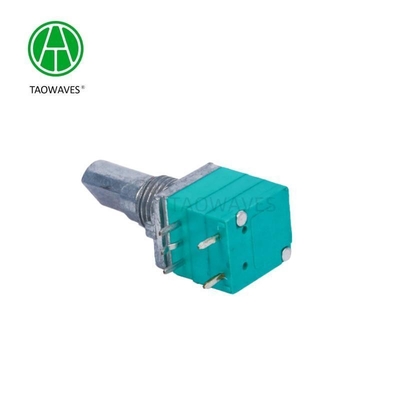

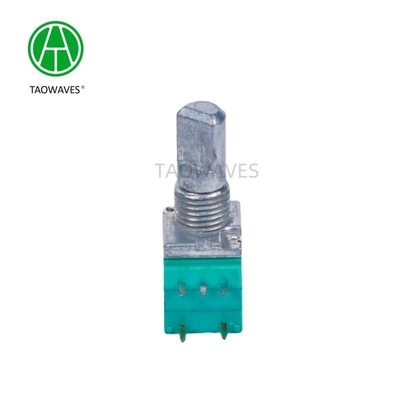

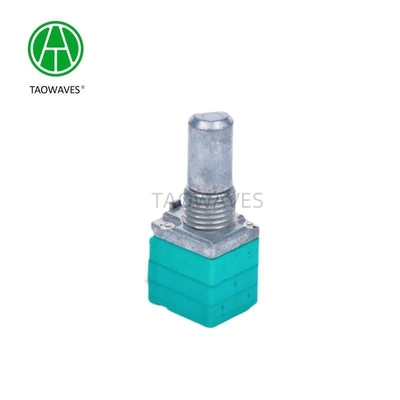

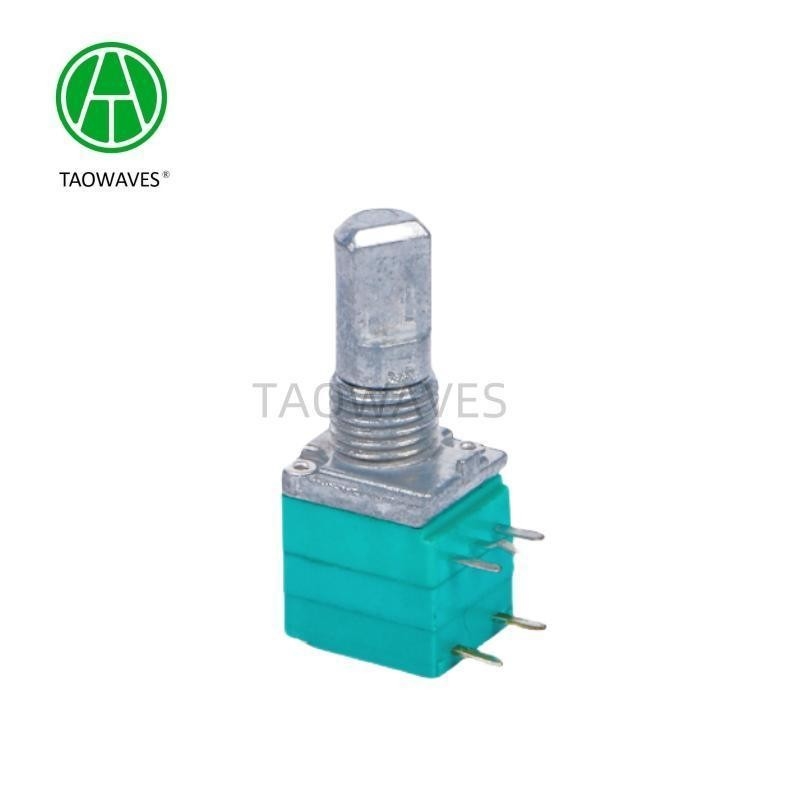

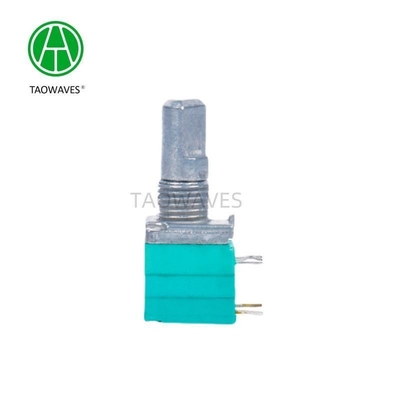

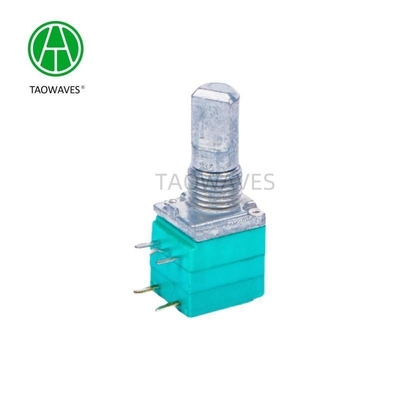

Metal Shaft 5-Pin Stereo precision adjustable resistor potentiometer 9mm Laminated rotary

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

Metal Shaft 5-Pin Stereo precision adjustable resistor potentiometer 9mm Laminated rotary

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

RP097050V07

Application:

Audio

Brand:

Taowaves

Transport Package:

Carton

Specification:

9mm

Trademark:

TAOWAVES Or Not

Origin:

China

Resistance:

Potentiometer

Function For Resistance:

Potentiometer

Packaging:

Throught Hole

Type:

Rotary Potentiometer

Quantity:

Single Connection

Shape:

Laminated Type

Customization:

Available | Customized Request

Highlight:

potentiometer rotary encoder

precision adjustable resistor potentiometer

adjustable resistor potentiometer 9mm

Product Description

Metal Shaft Straight Foot 5-pin Stereo Adjustable Resistance Switch Potentiometer 9MM

RP97 Series Product Specifications

1.Electrical Characteristics
Total Resistance	10 KΩ (Terminal1~3)
Rated Voltage	AC 25V DC 10V
Noise	Less than 100mV
Insulation	100 MΩMax
Dielectric strength:	1 minute at AC 500V

2.Mechanical Characteristics
Total ratational angle:	300±10°
Rotational torque	10~80gf.cm
Click Torque	50~250 gf.cm
Shaft wobble:	0.6*L/20mm Max(L: Shaft length)
Push-Pull Strength of shaft	8KG


3.Endurance Characteristics
Rotational life:	15,000cycles
Operating temperature range:	-10ºC to +70ºC
Storage temperature range:	-25ºC to+80ºC

Suggestions for order
When choosing potentiometers, please pay attention to the following items:
1.External dimensions and designation.
2.Usage.
3.Nominal resistance value and permissible deviation
4.Regular pattern ofresistance.
5.Whether soft positioning is provided.
6.Rated power or operational voltage.
7. Because of constant improvement or other reasons, the designation, external dimensions and performance index ofthe actual productsmay be difterent from that in this catalogue. For any change,please see the external figure and parameters in the Specification Table attach
ed to the sample.

Our Factory
Metal Shaft 5-Pin Stereo precision adjustable resistor potentiometer 9mm Laminated rotary 1

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
