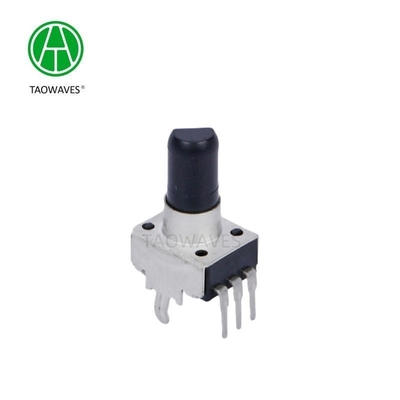

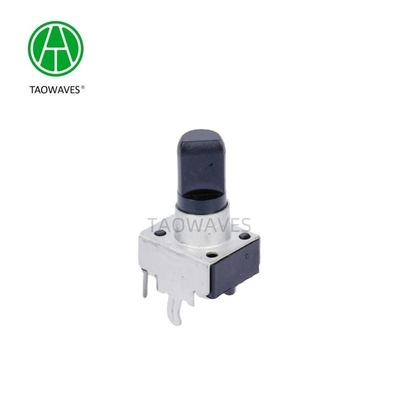

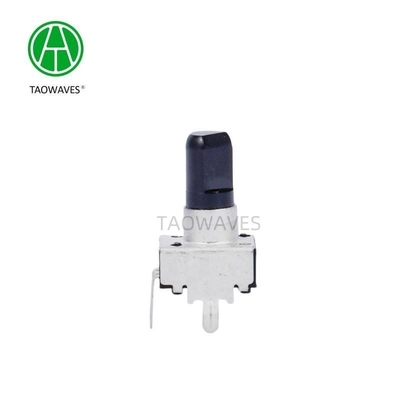

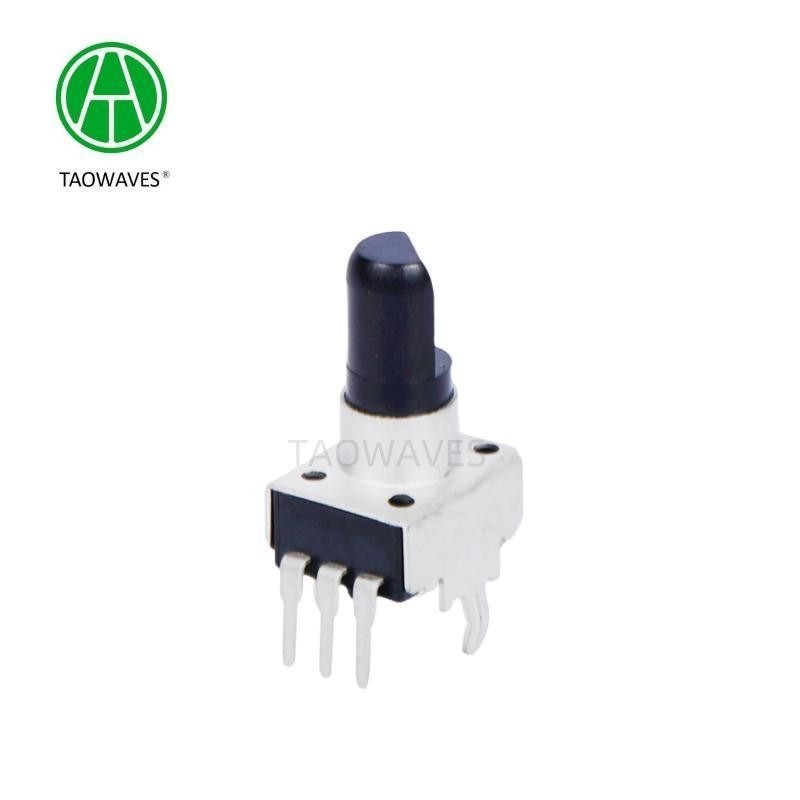

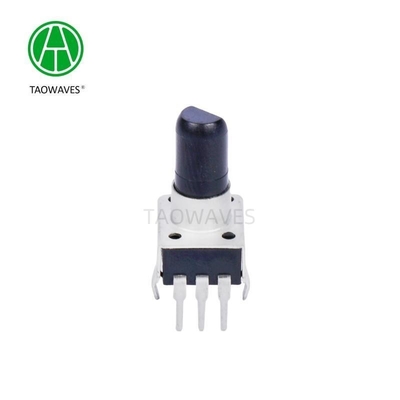

Single Connection 9mm Insulated Shaft industrial Rotary Potentiometer B5K 50K

Detail Information

Product Description

Detail Information

Document:

Product Brochure PDF

Model NO.:

RP093010V01

Application:

Audio

Brand:

Taowaves

Transport Package:

Carton

Specification:

9mm

Trademark:

TAOWAVES Or Not

Origin:

China

Resistance:

Potentiometer

Function For Resistance:

Potentiometer

Packaging:

Throught Hole

Type:

Rotary Potentiometer

Quantity:

Single Connection

Shape:

Laminated Type

Customization:

Available | Customized Request

Highlight:

9mm rotary potentiometer

industrial rotary potentiometer

50k rotary potentiometer

Product Description

9mm Rotary Potentiometer Insulated Shaft With Locating Point B5k 50k

RP93 Series Product Specifications

1.Electrical Characteristics
Total Resistance	B10 KΩ (Terminal1~3)
Rated Voltage	AC 50V DC 20V
Noise	Less than 100mV
Insulation	100 MΩMax
Dielectric strength:	1 minute at AC 250V

2.Mechanical Characteristics
Total ratational angle:	280±5°
Rotational torque	10~100gf.cm
Click Torque	30~150 gf.cm
Shaft wobble:	0.8*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	5KG
Stopper Strength	0.3N.m(3.0kgf.cm) Min


3.Endurance Characteristics
Rotational life:	10,000cycles
Operating temperature range:	-10ºC to +70ºC
Storage temperature range:	-30ºC to+80ºC

Suggestions for order
When choosing potentiometers, please pay attention to the following items:
1.External dimensions and designation.
2.Usage.
3.Nominal resistance value and permissible deviation
4.Regular pattern ofresistance.
5.Whether soft positioning is provided.
6.Rated power or operational voltage.
7. Because of constant improvement or other reasons, the designation, external dimensions and performance index ofthe actual productsmay be difterent from that in this catalogue. For any change,please see the external figure and parameters in the Specification Table attach
ed to the sample.

Our Factory
Single Connection 9mm Insulated Shaft industrial Rotary Potentiometer B5K 50K 1

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
