Potentiometer

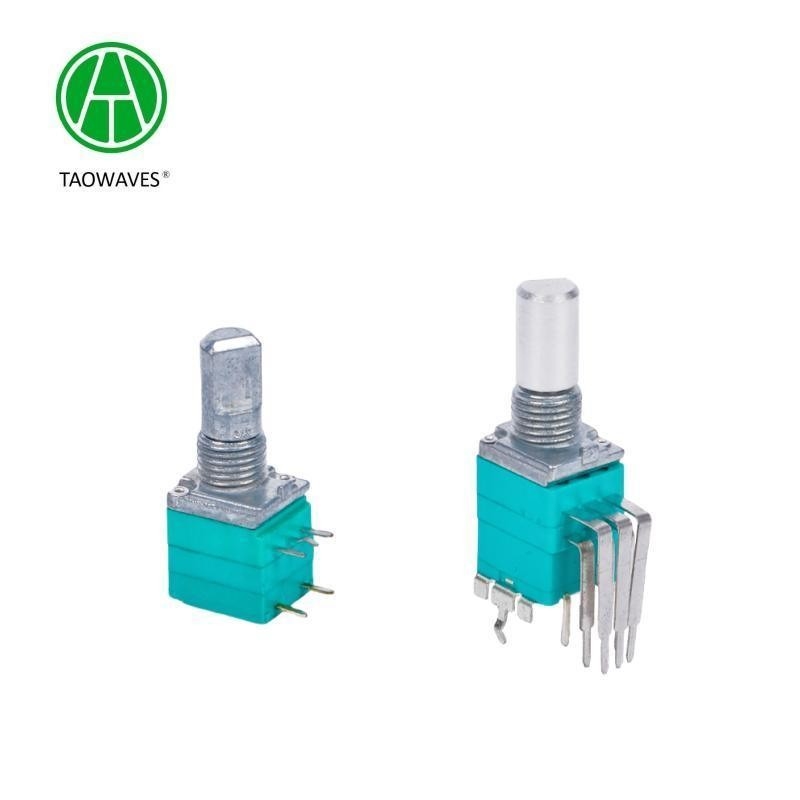

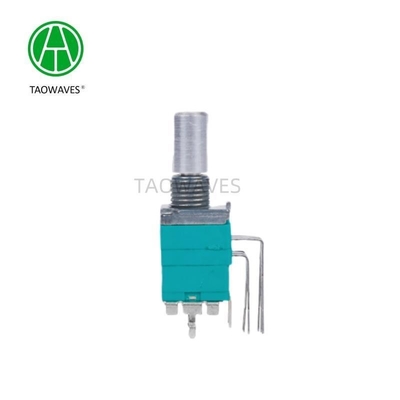

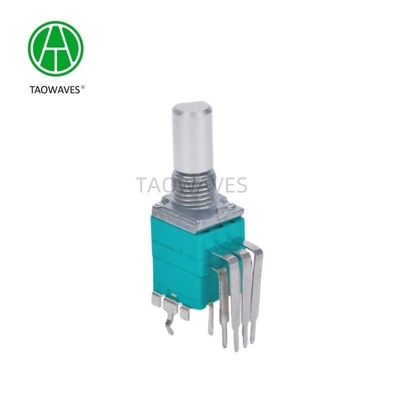

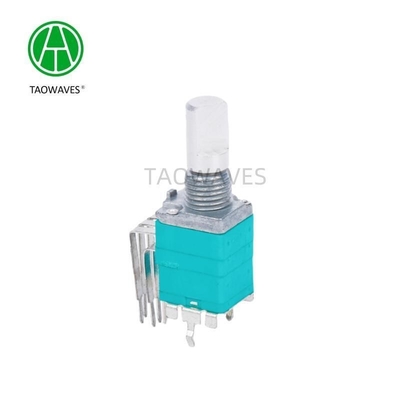

Single Connection RS97 B50K 8pin Potentiometer with Switch Audio Potentiometer Function

All Category

Potentiometer

Miss. Zabie.Xie

zabie@taowaves.com

+86 19107690150

Contact Now

Single Connection RS97 B50K 8pin Potentiometer with Switch Audio Potentiometer Function

Brand Name:	TAOWAVES
Model Number:	RP097060V03
MOQ:	10,000pcs
Price:	0.6~0.75usd
Packaging Details:	Carton
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Dongguan,China

Certification:

IATF16949,ISO9001

Document:

Model NO.:

RP097060V03

Application:

Audio

Brand:

Taowaves

Transport Package:

Carton

Specification:

Trademark:

TAOWAVES Or Not

Origin:

China

Resistance:

Potentiometer

Function For Resistance:

Potentiometer

Packaging:

Throught Hole

Type:

Rotary Potentiometer

Quantity:

Single Connection

Shape:

Laminated Type

Customization:

Available | Customized Request

Supply Ability:

5,000,000pcs/Month

Highlight:

B50K Potentiometer

8pin Potentiometer

b50k potentiometer8 pin

Product Description

Rs97 B50k 8pin Potentiometer With Switch Audio Potentiometer

RP97 Series Product Specifications

1.Electrical Characteristics
Total Resistance	50 KΩ (Terminal1~3)
Rated Voltage	Linear taper B: AC50V,DC10V
Switch Rated Voltage	0.5A at DC 12V
Noise	Less than 100mV
Insulation	100 MΩMax
Dielectric strength:	1 minute at AC 300V

2.Mechanical Characteristics
Total ratational angle:	300±10°
Switch ratational angle:	50±10°
Rotational torque	10~250gf.cm
Switch action	1000gf.cm Max
Shaft wobble:	0.6*L/20mm Max(L: Shaft length)
Push-Pull Strength of shaft	6KG
Bushing nut tighten Strength	5.0 Kgf.cm Min
Click torque	50~250gf.cm

3.Endurance Characteristics
Rotational life:	10,000cycles
Push-life:	10,000 cycles
Operating temperature range:	-10ºC to +70ºC
Storage temperature range:	-25ºC to+80ºC

Suggestions for order
When choosing potentiometers, please pay attention to the following items:
1.External dimensions and designation.
2.Usage.
3.Nominal resistance value and permissible deviation
4.Regular pattern ofresistance.
5.Whether soft positioning is provided.
6.Rated power or operational voltage.
7. Because of constant improvement or other reasons, the designation, external dimensions and performance index ofthe actual productsmay be difterent from that in this catalogue. For any change,please see the external figure and parameters in the Specification Table attach
ed to the sample.

Our Factory
Single Connection RS97 B50K 8pin Potentiometer with Switch Audio Potentiometer Function 1

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
