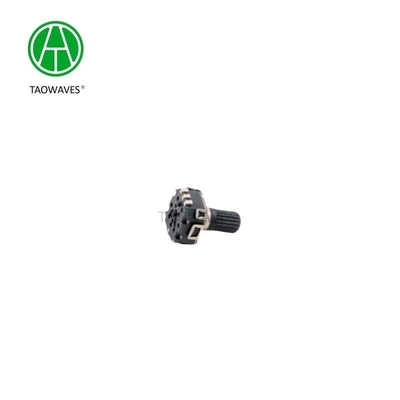

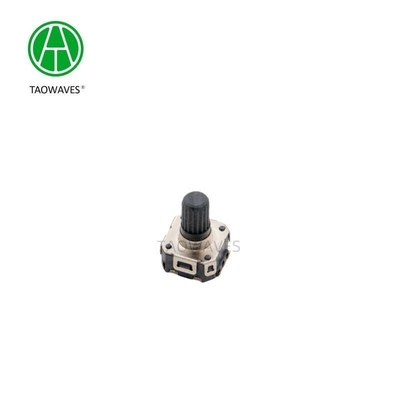

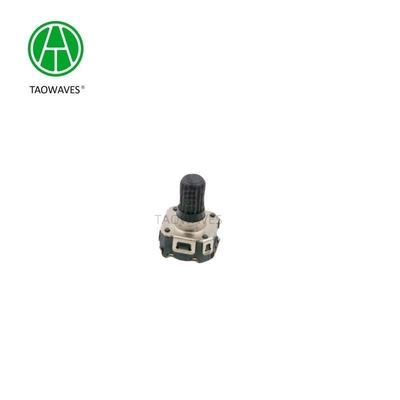

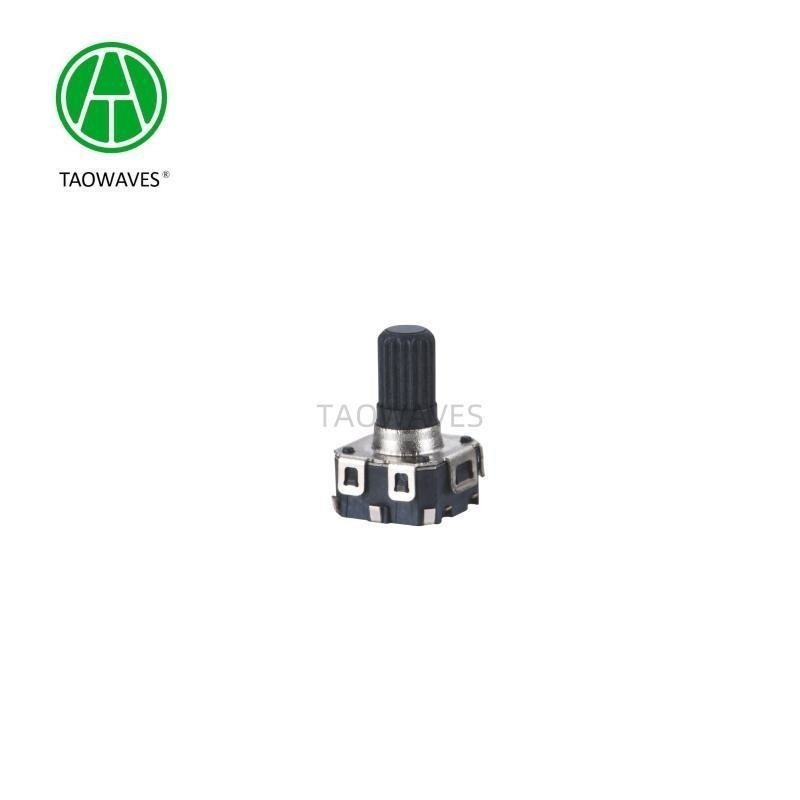

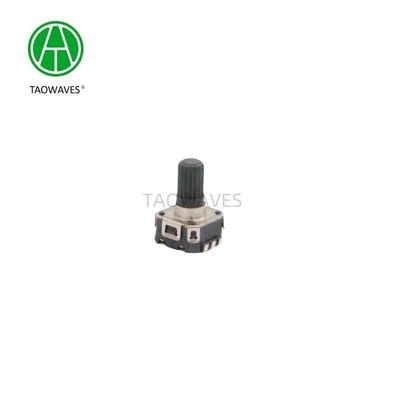

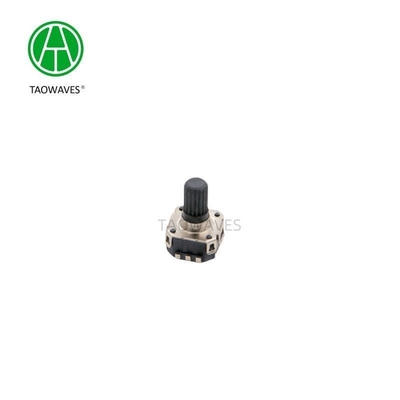

Miniature Incremental Rotary Encoder Incremental Push Button
  • name
  • name
  • name
  • name
  • name
  • name

Miniature Incremental Rotary Encoder Incremental Push Button

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC06A10R01
Installation Form:
Axle Sleeve Type
Brand:
Taowaves
Transport Package:
Standard Packaging
Specification:
6mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

Miniature Incremental Rotary Encoder

,

Push Button Rotary Encoder

,

Miniature Rotary Encoder

Product Description

6mm Rotary Encoder Push Button Switch Incremental Miniature Rotary Micro Encoder
EC06A10R01
Miniature Incremental Rotary Encoder with Push Button





Miniature Incremental Rotary Encoder with Push Button

Incremental Encoder
Size: 6mm
Switch Travel: 0.1mm
Pulses: 6P
Number of detent: 0/12
Rotational life: 15000cycles

EC06 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 6pulses/360°
Insulation resistance:  50MΩ Min at DC 250V
Dielectric strength: 1 minute at AC300V
Phase Difference:  T1,T2,T3,T4≥6ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 1~4.5mN.m.(10~45gf.cm),After SMT:0.5~4mN.m(5~40gf.cm)
Shaft wobble:  1*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft 3kg
Operation fore of switch: 220±50gf
Travel of switch:  0.1+0.1/-0 mm

3.Endurance Characteristics
Rotational life:  15,000 cycles
Push-life:  20,000 cycles
Operating temperature range: -30ºC to+80ºC
Storage temperature range: -40ºC to+85ºC


Our Factory
Miniature Incremental Rotary Encoder with Push ButtonMiniature Incremental Rotary Encoder with Push ButtonMiniature Incremental Rotary Encoder with Push Button
Miniature Incremental Rotary Encoder with Push Button
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
