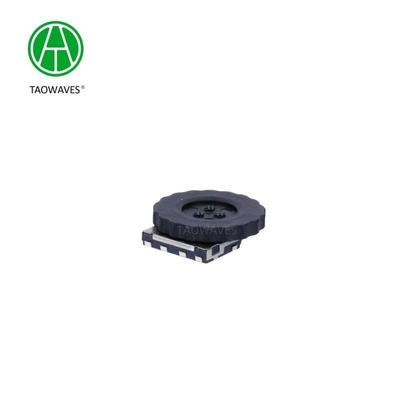

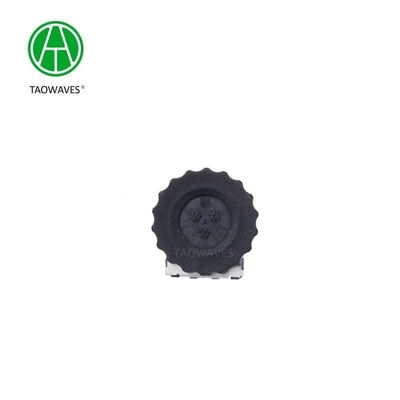

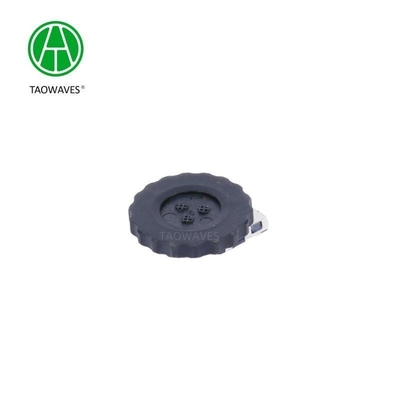

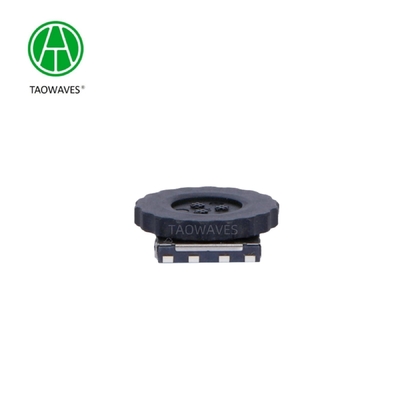

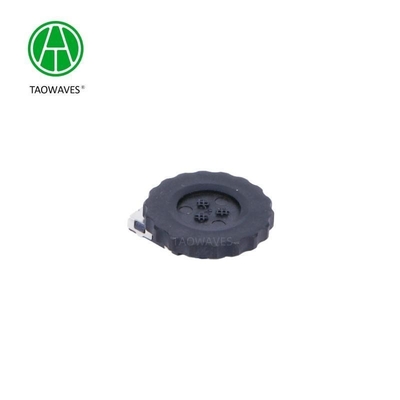

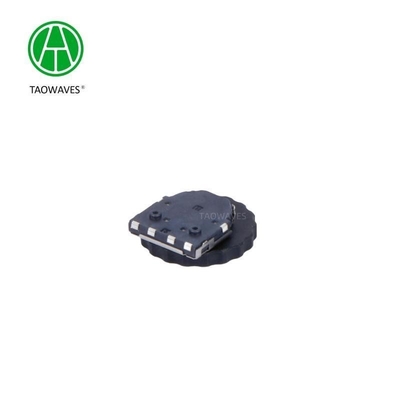

Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System
  • name
  • name
  • name
  • name
  • name
  • name

Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System

Detail Information
Product Description
Detail Information
Document:
Product Brochure PDF
Model NO.:
EC10A01R01
Installation Form:
-
Brand:
Taowaves
Transport Package:
Standard Packaging
Specification:
10mm
Trademark:
TAOWAVES
Origin:
China
Type:
Rotary Encoder
Working Principle:
Incremental
Readout Mode:
Contact
Operating System:
Contact Brush Type
Signal Output:
Voltage Output
Axle Sleeve Type:
Empty Type
Customization:
Available | Customized Request
Highlight:

10mm Rotary Encoder

,

10mm Mini Rotary Encoder

,

Ec10 Rotary Encoder

Product Description

EC10 Series 10mm Rotary Encoder Mini Encoder
EC10A01R01
Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 0

Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 1

Incremental Encoder
Size: 10mm
Switch Travel: 0.5mm
Pulses: 15P
Number of detent: 0/15
Rotational life: 50,000cycles

EC06 Series Product Specifications
1.Electrical  Characteristics
Rated voltage: DC 5V
Resolution: 15pulses/360°
Phase Difference: T1,T2,T3,T4≥5ms

2.Mechanical Characteristics
Total ratational angle: 360°(Endless)
Detent torque: 1~40mN.m.
Push-Pull Strength of shaft 30N(3.06 kgf) in direction A , 5N(510gf) in direction B
Operation fore of switch: 2~6N
Travel of switch: 0.5±0.2mm

3.Endurance Characteristics
Rotational life: 50,000 cycles
Push-life: 50,000 cycles
Operating temperature range: -20ºC to+60ºC
Storage temperature range: -30ºC to+70ºC

Our Factory
Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 2Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 3Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 4Application:
Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 5
Ec10 Series 10mm Mini Rotary Encoder With Contact Brush Type Operating System 6
FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.

2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.

3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)

4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.

5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.

6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
